| Year: | 2001 |
| Model: | AD140 LEAD |
| Model Number: | AD140 CUSTOM |
| Config: | HEAD |

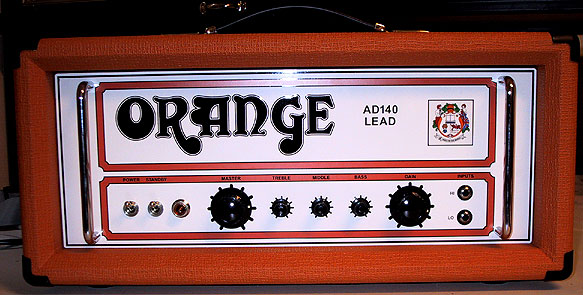

| Control Panel Layout: | Power - Standby - Pilot light - Master - Treble - Middle - Bass - Gain - 2 Inputs (Hi/Lo) |

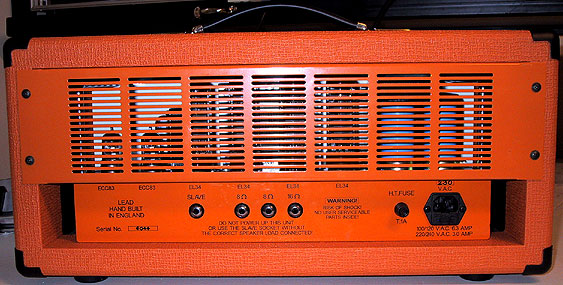

| Rear Panel Layout: | Slave Output - 3 Speaker outputs(8/8/16 Ohms) - H.T. fuse holder - Female Euro mains plug with fuse holder |
| Cabinet: | size? |
| Weight: | |
| Speakers/Load: | 8/8/16 Ohms |
| Speaker model: | N/A |
| Effects: | N/A |
| Output: | ??? Watts |
| Preamp tubes: | 1.5 x 12AX7 |
| Power tubes: | 4 x EL34 |
| Bias: | Fixed bias |
| Rectifier: | solid state |
| Phase Inverter: | |
| Circuit: | |

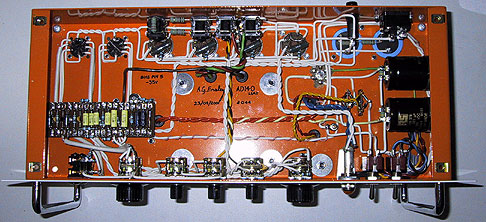

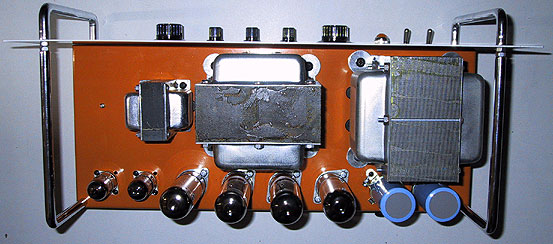

| Chassis layout: | custom shop hand-wired |
| Comments: |
