Orange Amp Field Guide: AD1512 Class A

AD1512 COMBO




Year: 2001
Model:AD1512 Combo
Model Number:AD1512
Config:COMBO

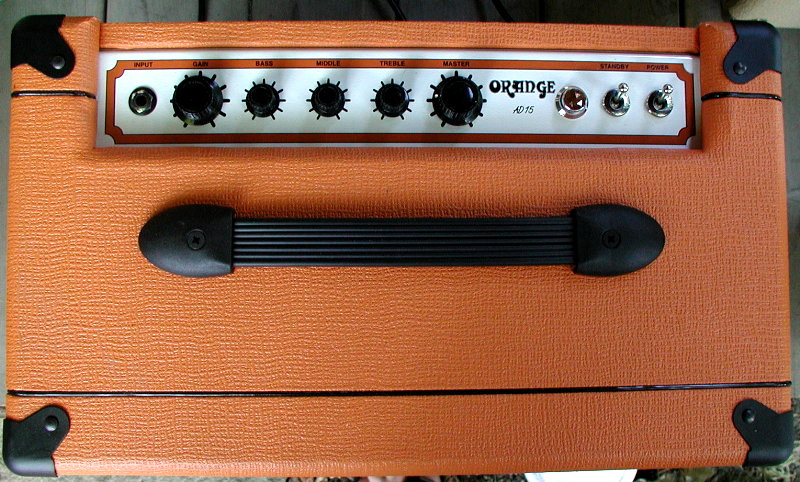

Control Panel Layout:Master Vol - Gain - Bass - Mid - Treble

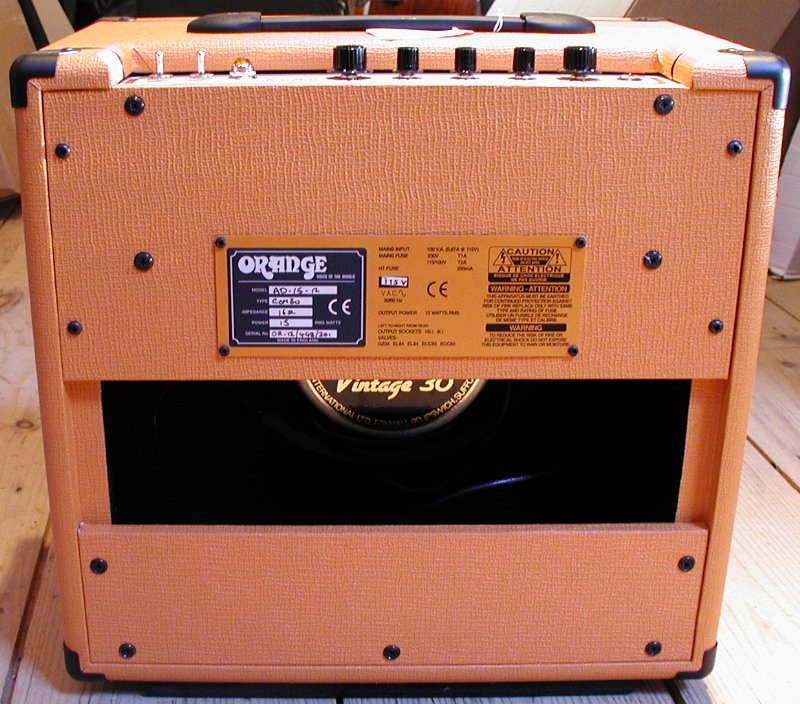

Rear Panel Layout:
Cabinet:43 x 40 x 25cm
Weight:16 kg
Speakers/Load:8/16 Ohms
Speaker model:1 x 12" Celestion Vintage 30
Effects:None
Output:15 Watts
Preamp tubes:1.5 x 12AX7
Power tubes:2 x EL84
Bias:???
Rectifier:GZ34 rectifier tube
Phase Inverter:Cathodyne type: 1/2 x 12ax7 ???
Circuit:schematic?
Chassis layout:(pcb number?)
Comments:
