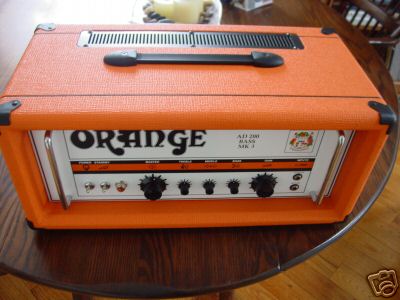

Orange Amp Field Guide: AD200B MK3 BASS HEAD

AD200B MK3 BASS HEAD





Year: 2001

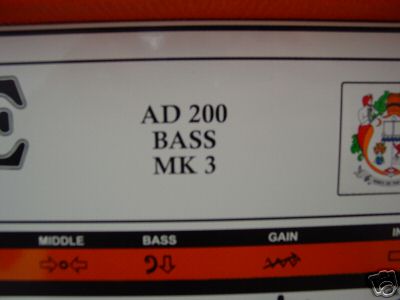

Model:AD200B MK3 BASS HEAD
Model Number:AD200 Bass
Config:HEAD

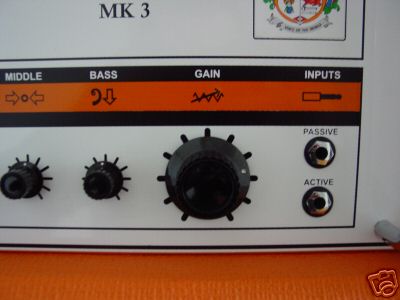

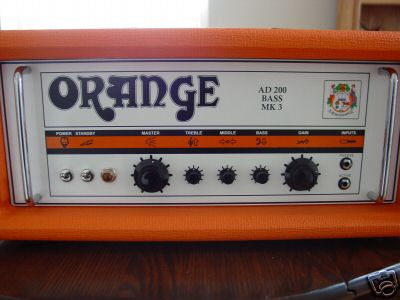

Control Panel Layout:Power - Standby - Pilot light - Master - Treble - Middle - Bass - Gain - 2 Inputs (Hi/Lo)

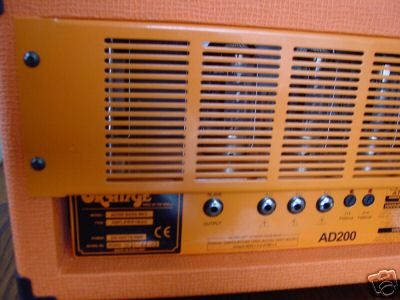

Rear Panel Layout:Slave Output - Speaker outputs(4/8??? Ohms) - Bias test points? - H.T. fuse holder - Euro mains plug with fuse holder
Cabinet:55 x 24 x24 cm
Weight:24kg
Speakers/Load:4/8 Ohms
Speaker model:N/A
Effects:N/A
Output:200 Watts
Preamp tubes:1 x ECC83, 1 x ECC81
Power tubes:4 x 6550 Tetrode
Bias:Fixed bias
Rectifier:solid state
Phase Inverter:Long tail pair PI (full ECC81?)
Chassis layout:custom shop hand-wired
Comments:Mk3 is the PCB version of the custom shop AD200B.
