| Year: | 2001 |
| Model: | AD30 Head |
| Model Number: | AD30H |
| Config: | Head |

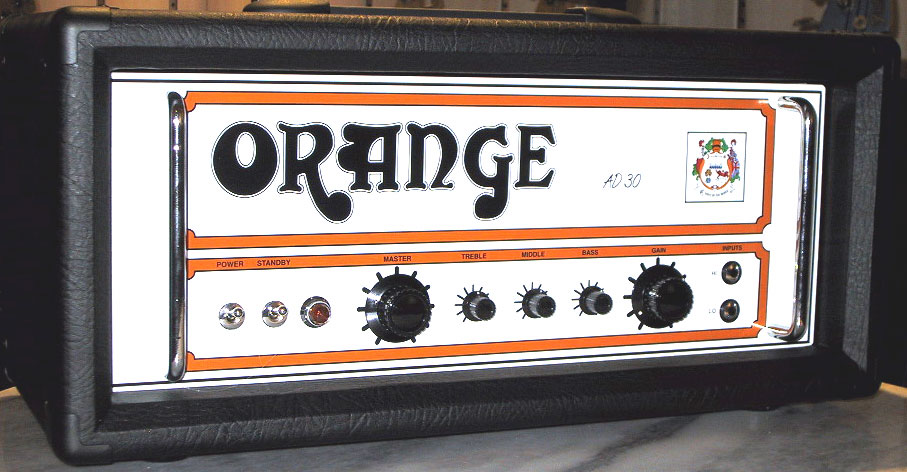

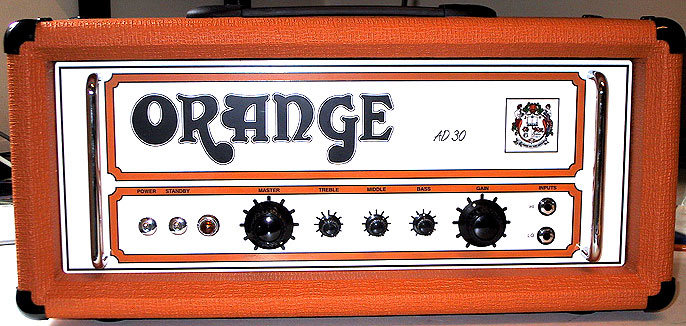

| Control Panel Layout: | Master Vol - Gain - Bass - Mid - Treble |

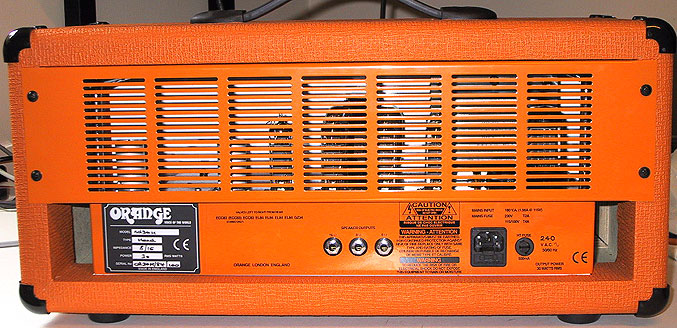

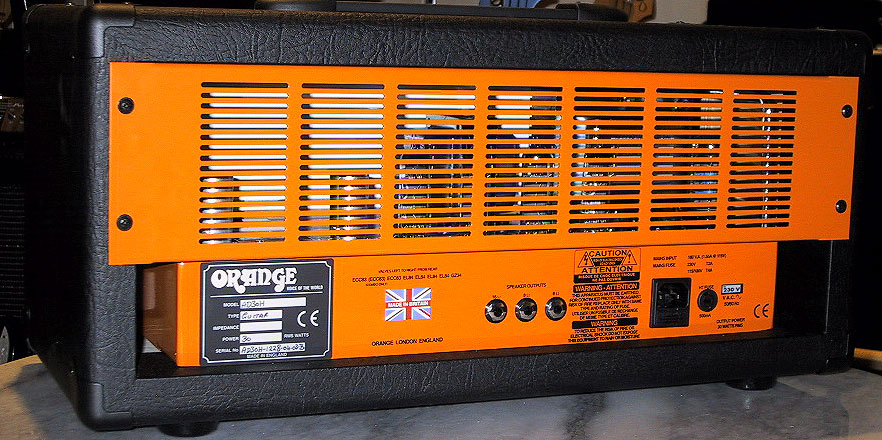

| Rear Panel Layout: | ??? |
| Cabinet: | 55 x 24 x 24 cm |
| Weight: | 30 kg |
| Speakers/Load: | 8/16 Ohms |
| Speaker model: | 2 x 12" Celestion Vintage 30's |
| Effects: | None |
| Output: | 30 Watts |
| Preamp tubes: | 1.5 x 12AX7 |
| Power tubes: | 4 x EL84 |
| Bias: | ??? |
| Rectifier: | GZ34 rectifier tube |
| Phase Inverter: | Cathodyne type: 1/2 x 12ax7 ??? |
| Circuit: | schematic? |

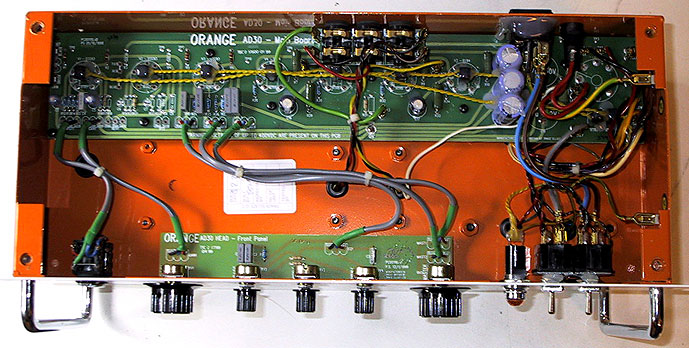

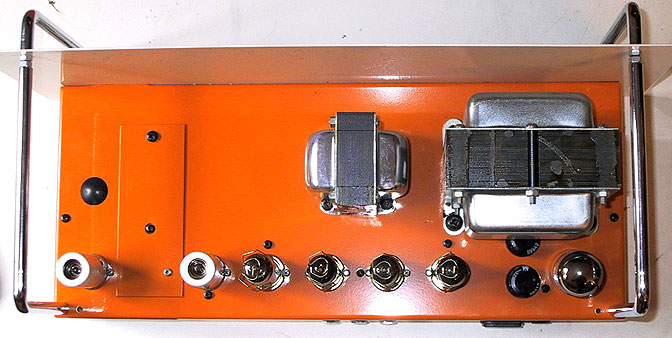

| Chassis layout: | (pcb number?) |
| Comments: |
