Orange Amp Field Guide: AD30TC Class A

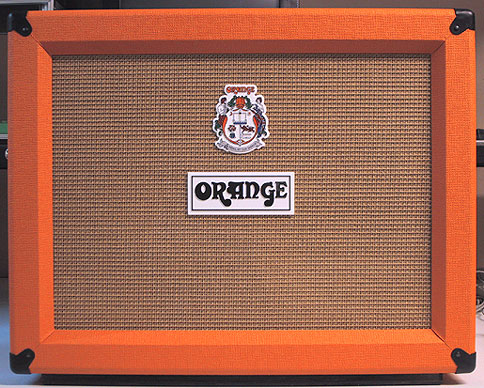

AD30 Twin Channel COMBO




Year: recent?
Model:AD30 Twin Channel Combo
Model Number:AD30TC
Config:COMBO

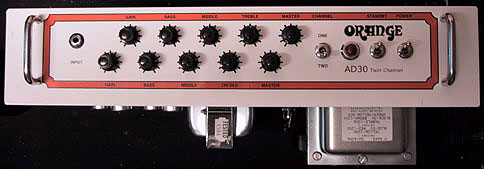

Control Panel Layout: 2 x [Master Vol - Gain - Bass - Mid - Treble]
Rear Panel Layout:
Knobs:
Cabinet:size?
Cab Covering:Orange tolex
Cab Hardware:Handles,etc..
Logo:
Weight:30 kg
Speakers/Load:8/16 Ohms
Speaker model:2 x 12" Celestion Vintage 30's
Effects:Reverb:
Output:30 Watts
Preamp tubes:1.5 x 12AX7
Power tubes:4 x EL84
Bias:???
Rectifier:GZ34 rectifier tube
Phase Inverter:Cathodyne type: 1/2 x 12ax7 ???
Circuit:schematic?
Chassis layout:(pcb number?)
Comments:Tested by some music magazine and preferred over a VOX Reissue!!!
