| Year: | 2002 |
| Model: | AD50 CUSTOM HEAD |
| Model Number: | |
| Serial: | 001 |
| Config: | HEAD |
| Control Panel Layout: | Power - Standby - Pilot light - Master - Presence - Treble - Bass - Gain - Input - Sustain (footswitchable eq bypass) |

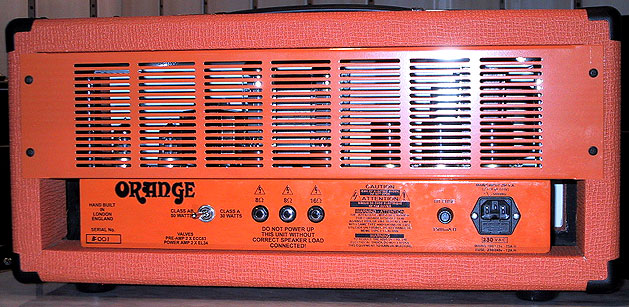

| Rear Panel Layout: | 50W Class AB/30w Class A switch - Speaker outputs (8/8/16 Ohms) - H.T. fuse holder - Euro mains plug with fuse holder |
| Cabinet: | 55 x 24 x24 cm |
| Weight: | 24kg |
| Speakers/Load: | 8/8/16 Ohms |
| Speaker model: | N/A |
| Effects: | N/A |
| Output: | 50 Watts in Class AB / 30 Watts in Class A |
| Preamp tubes: | 2 x ECC83 |
| Power tubes: | 2 x EL34 |
| Bias: | Fixed bias |
| Rectifier: | solid state |
| Phase Inverter: | Still Cathodyne type? |

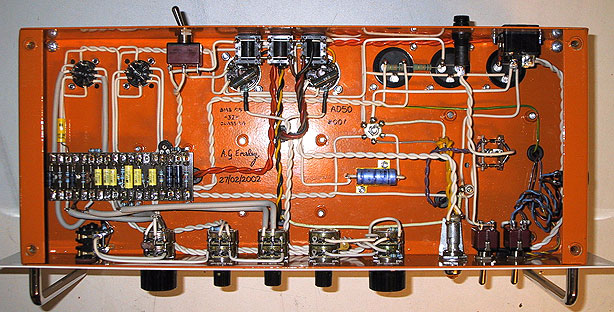

| Chassis layout: | Hand wired point-to-point |
| Comments: | Sustain feature operates with any latching f/s and bypasses the eq for a sustain (gain/volume) boost |
