Orange Amp Field Guide: MATAMP ORANGE or100 HEAD

Orange Matamp OR100

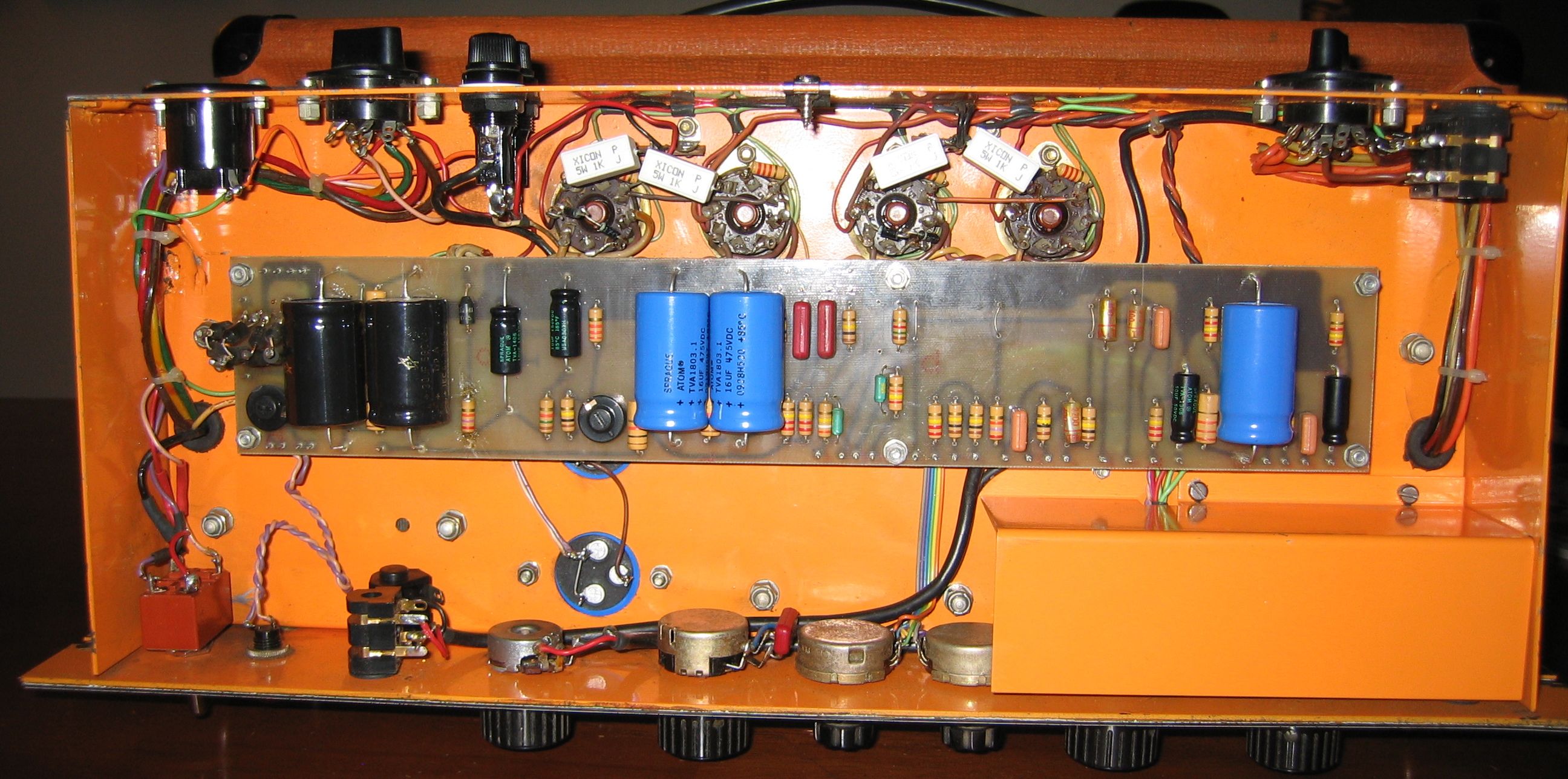

Close up pictures of OR100 no46
Borrowed from http://www.tiptop.se/ Thanks to Henrik L.



Year: 1970??
Model:OR100
Model Number:OR100
Serial Number:46
Config:Head
Control Panel:Plexi panel

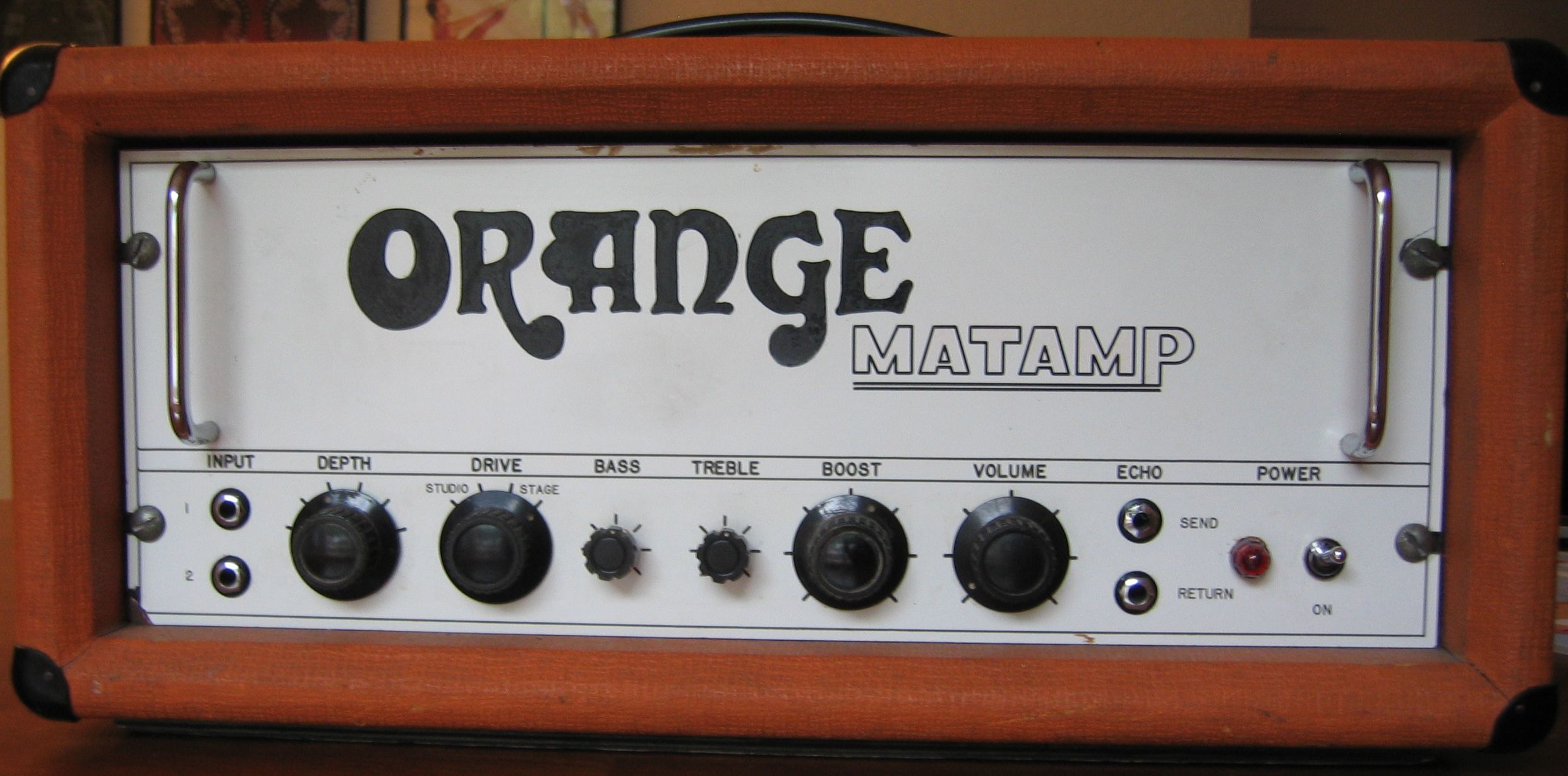

Control Panel Layout:Inputs - Depth - Drive - Bass - Treble - Boost - Volume - Reverb Send - Reverb Return - Pilot Light - Power switch

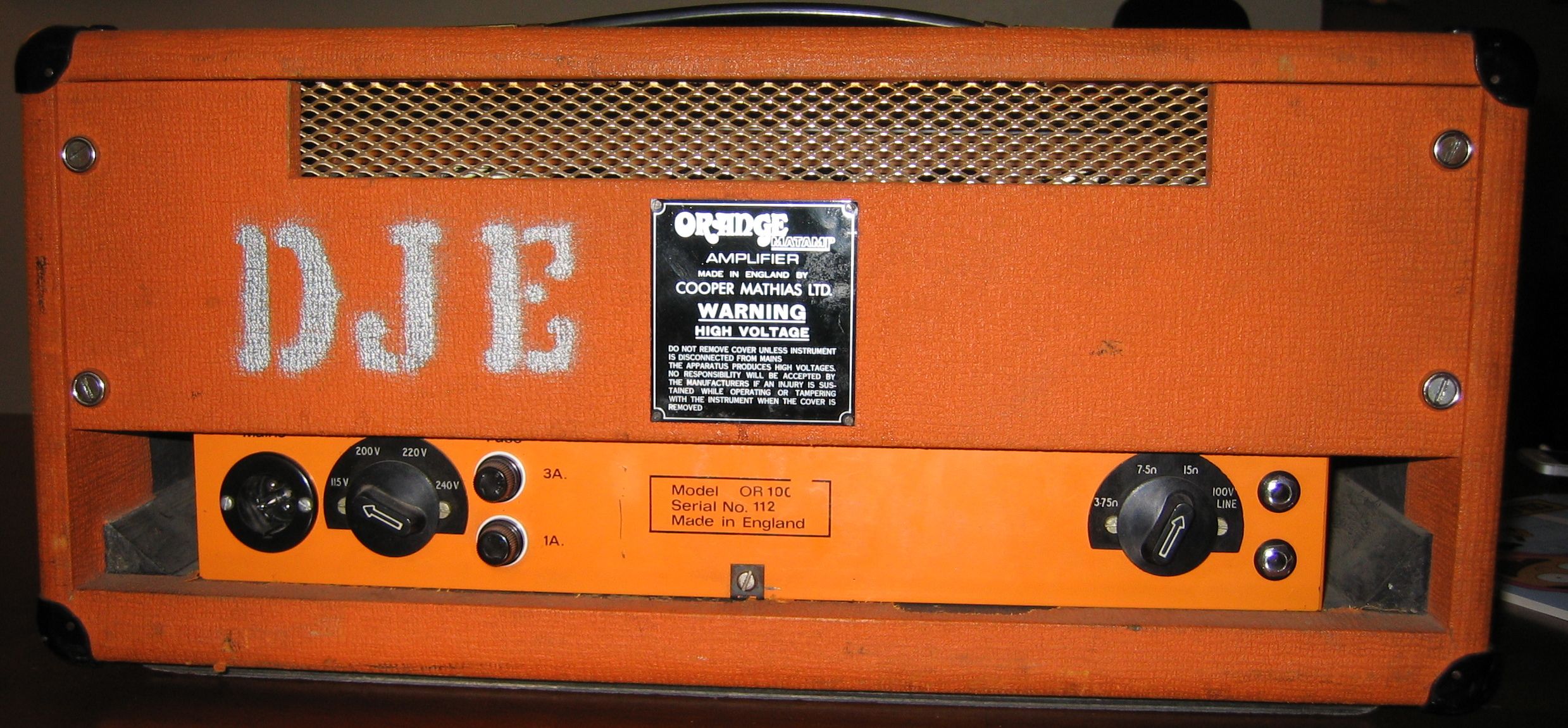

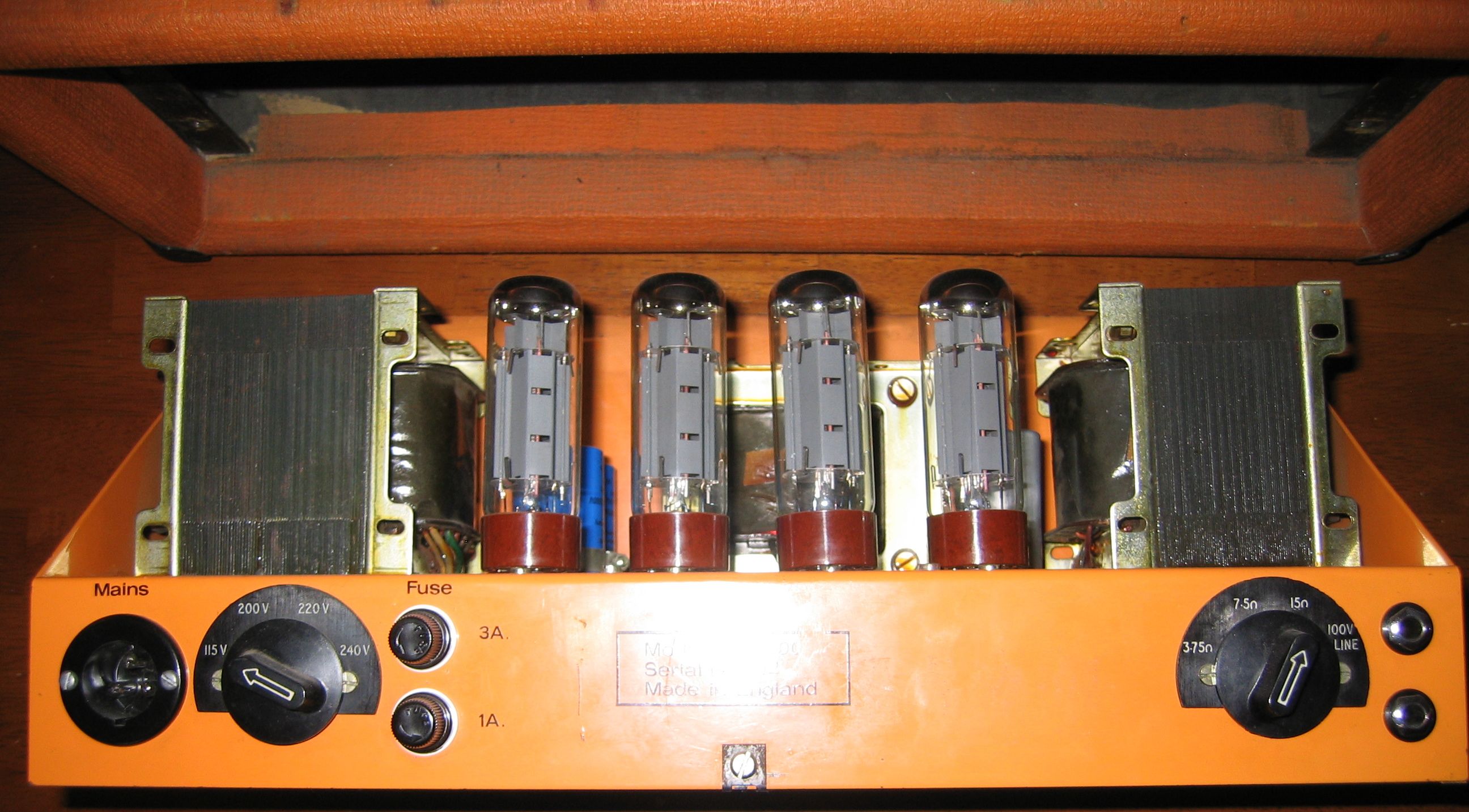

Rear Panel Layout:Mains plug - Voltage selector - 2 fuse holders - Impedance selector - 2 speakers outputs
Cabinet:size?
Weight:
Speakers/Load:3.75/7.5/15 Ohm or 100V line
Speaker model:N/A
Effects:N/A
Output:100 Watts
Preamp tubes:1.5 x 12AX7 ???

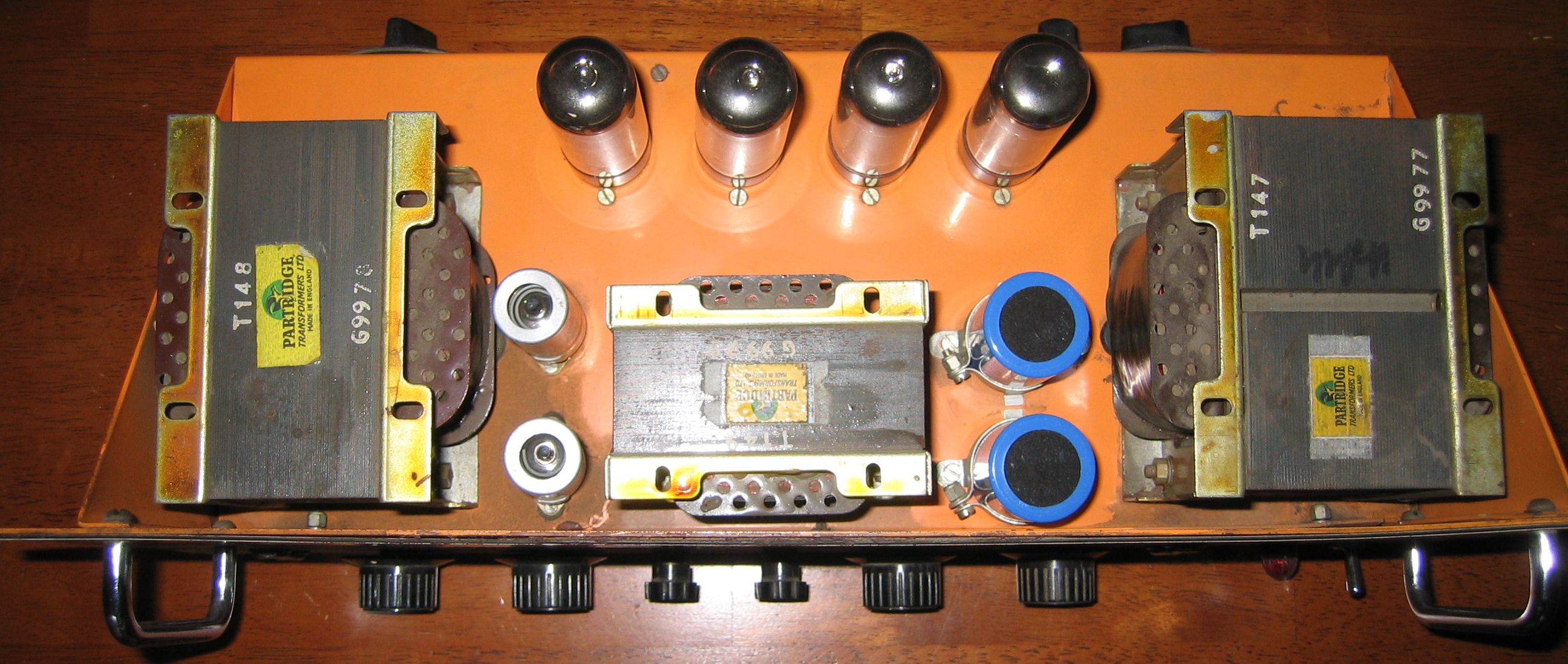

Power tubes:4 x EL34
Bias:Fixed bias
Rectifier:solid state
Phase Inverter:Cathodyne type: 1/2 x 12ax7
Circuit:???
Chassis layout:preamp tubes are chassis mounted
Comments:/
