Orange Amp Field Guide: MATAMP ORANGE OR200 HEAD

Orange Matamp OR200




Year: 1970??
Model:OR200
Model Number:OR200
Serial Number:??
Config:Head
Control Panel:Plexi panel
Control Panel Layout:Inputs - Depth - Drive - Bass - Treble - Boost - Volume - Reverb Send - Reverb Return - Pilot Light - Power switch

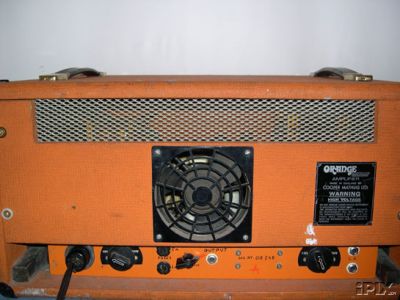

Rear Panel Layout:Mains plug - Voltage selector - 2 fuse holders - Impedance selector - 2 speakers outputs
Cabinet:size?
Weight:
Speakers/Load:3.75/7.5/15 Ohm or 100V line
Speaker model:N/A
Effects:N/A
Output:100 Watts
Preamp tubes:1.5 x 12AX7 ???
Power tubes:4 x KT88
Bias:Fixed bias
Rectifier:solid state
Phase Inverter:Cathodyne type: 1/2 x 12ax7
Circuit:???
Chassis layout:
Comments:/
