Orange Amp Field Guide: MATAMP ORANGE REVERB UNIT

Orange Matamp Reverb Unit


Reverb Unit without mixing switch


Reverb Unit with mixing switch
Year: around 1970??
Model:??
Model Number:??
Serial Number:??
Config:Head
Control Panel:

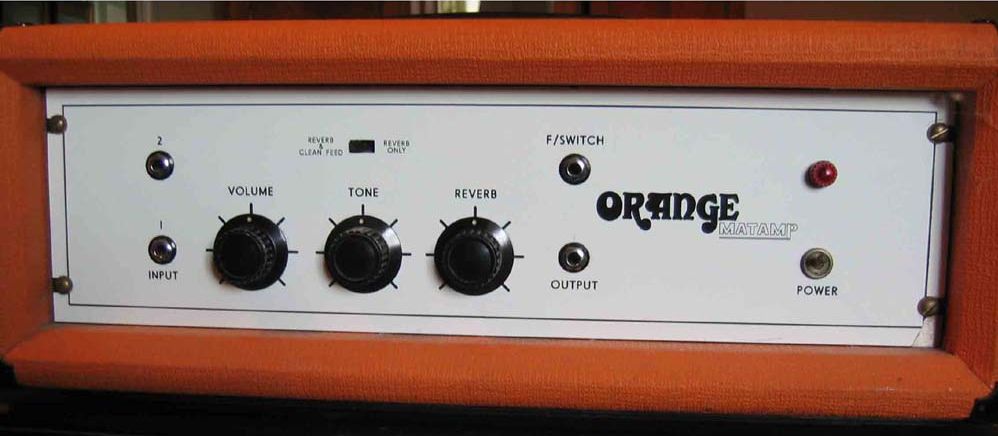

Control Panel Layout:Inputs - Volume - Tone - Reverb Only/ Reverb + Clean switch - Reverb - Footswitch input - Output - Pilot Light - Power switch

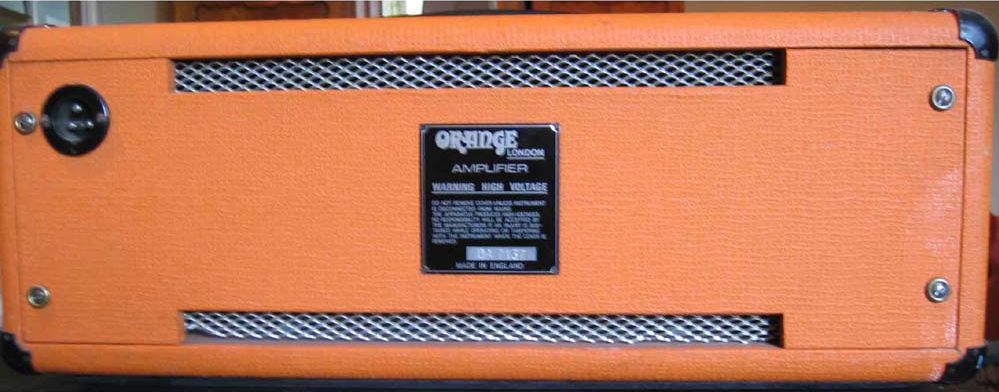

Rear Panel Layout:Mains plug
Cabinet:size?
Weight:
Reverb tank:???
Tubes:3 x 12AX7???
Rectifier:solid state
Circuit:Tube driven Reverb

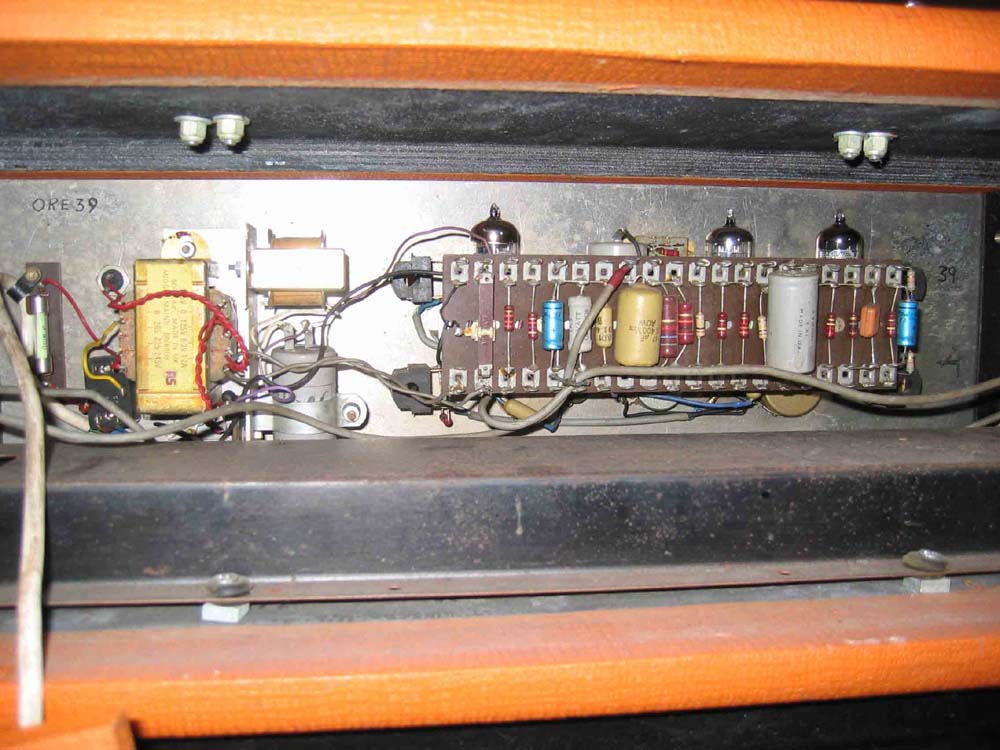

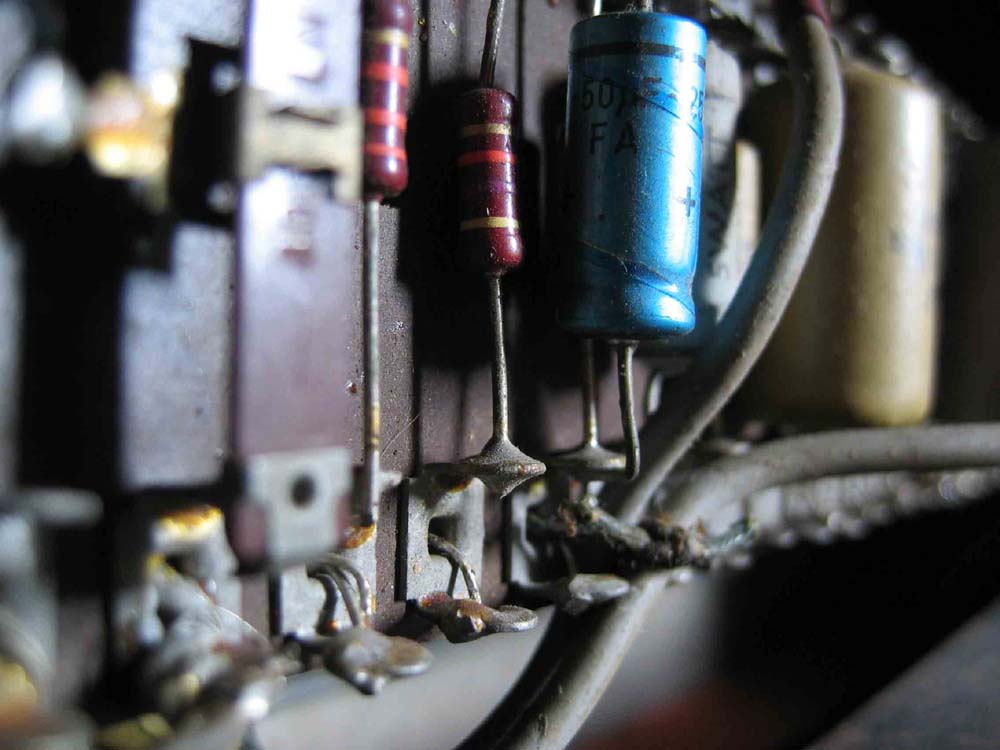

Chassis layout:Tag board is vertically mounted with tubes behind it
Comments:
