Orange Amp Field Guide: OD120 COMBO Vintage

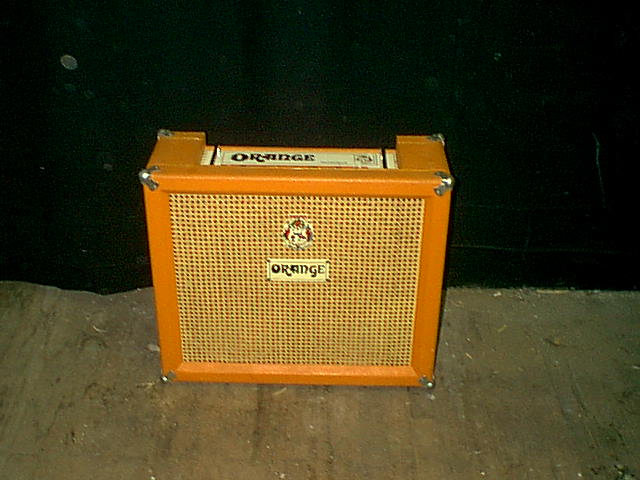

OD120 COMBO


Courtesy of Ronald from the Netherlands.


Year: 1976-?
Model:Overdrive 120
Model Number:OD120
Config:COMBO

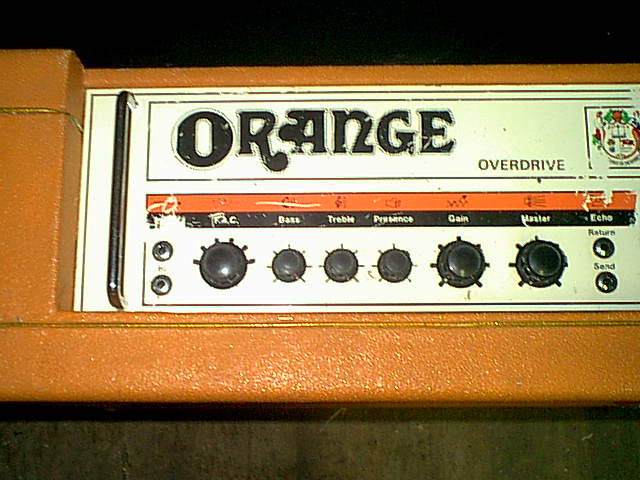

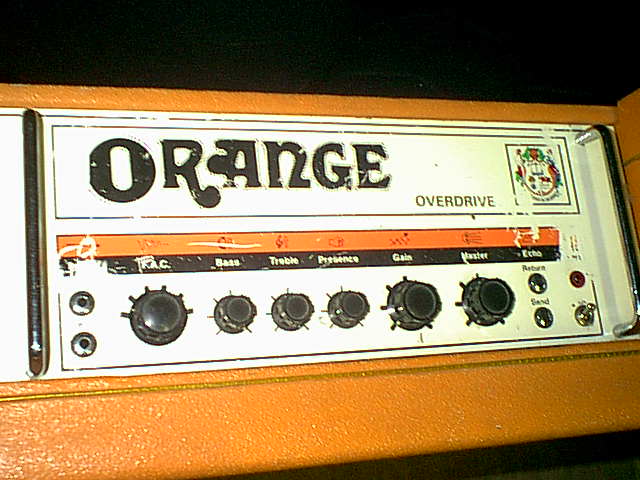

Control Panel Layout:Input - F.A.C. - Bass - Treble - Presence - Gain - Master - Echo Send - Echo Return - Pilot Light - Power

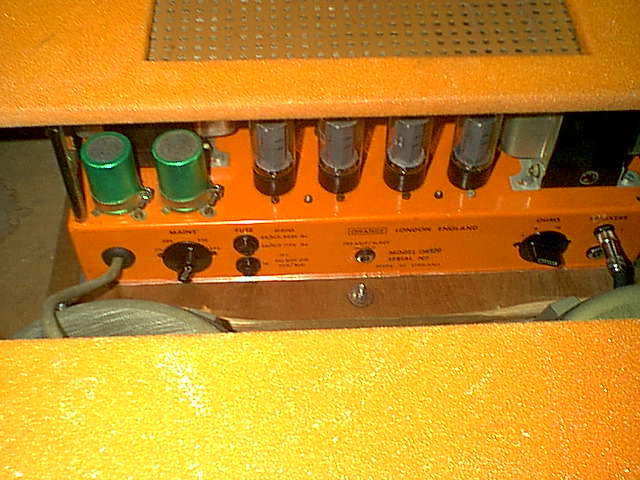

Rear Panel Layout:Fixed mains chord - Mains switch - 2 Fuse holders - Slave Output? - Impedance switch - 2 Speaker outputs
Cabinet:size?
Weight:
Speakers/Load:4/8/16 Ohms
Speaker model:2 x ???
Effects:N/A
Output:120 Watts
Preamp tubes:1.5 x 12AX7
Power tubes:4 x EL34
Bias:Fixed bias
Rectifier:solid state
Phase Inverter:1/2 x 12AX7
Circuit:info on OD schematics
Chassis layout:certain type of layout (pcb number/hand-wired?)
Comments:
