| Year: | ? |
| Model: | Overdrive 80 |

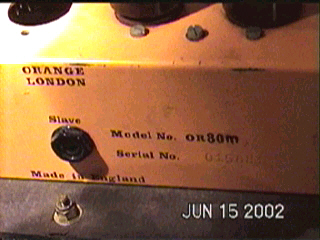

| Model Number: | OD80 |

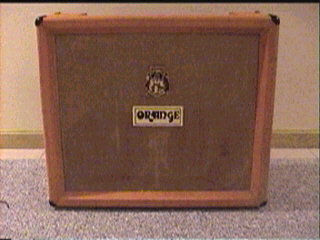

| Config: | COMBO |

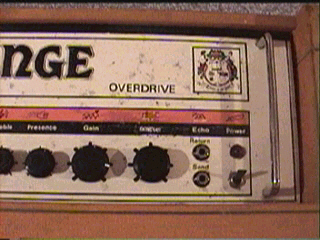

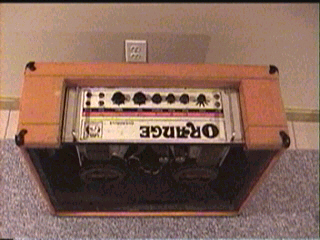

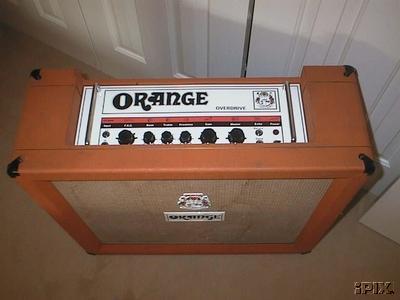

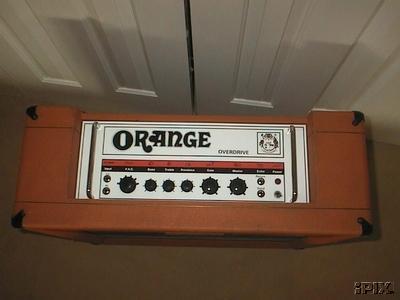

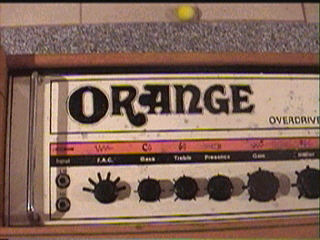

| Control Panel Layout: | Input - F.A.C. - Bass - Treble - Presence - Gain - Master - Echo Send - Echo Return - Pilot Light - Power |

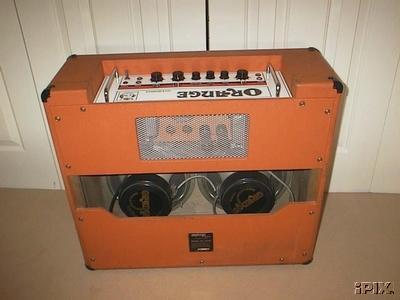

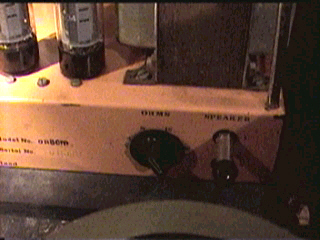

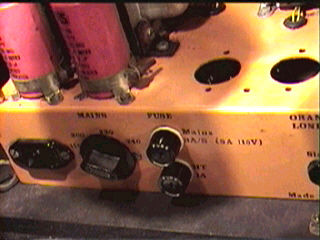

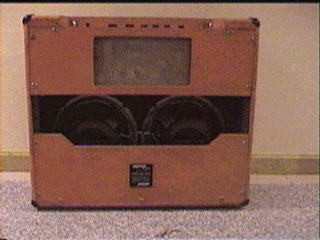

| Rear Panel Layout: | Fixed mains chord - Mains switch - 2 Fuse holders - Slave Output? - Impedance switch - 2 Speaker outputs |

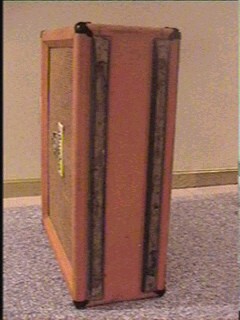

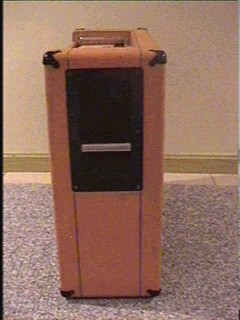

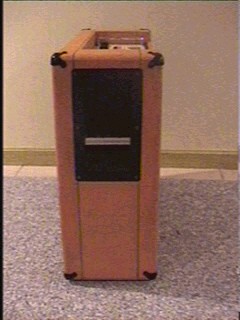

| Cabinet: | size? |
| Weight: | |
| Speakers/Load: | 8/16 Ohms |

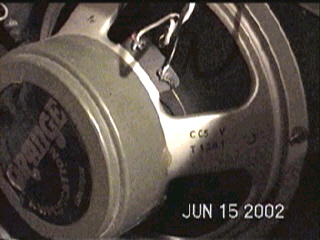

| Speaker model: | 2 x ??? |
| Effects: | N/A |
| Output: | 120 Watts |
| Preamp tubes: | 1.5 x 12AX7 |
| Power tubes: | 2 x EL34 |
| Bias: | Fixed bias |
| Rectifier: | solid state |
| Phase Inverter: | 1/2 12AX7 |
| Circuit: | info on OD schematics |

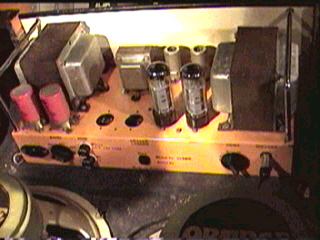

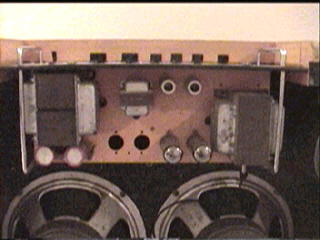

| Chassis layout: | certain type of layout (pcb number/hand-wired?) |
| Comments: | |
