Orange Amp Field Guide: OR135 COMBO

OR135 1x12 COMBO


ebay info

Year: 1978
Model:OR135 (Hustler?)
serial Number:16312
Config:COMBO with front controls

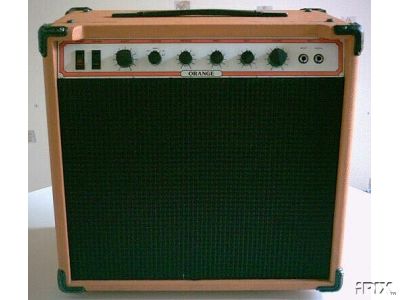

Control Panel Layout:Power - Standby - Master - Contour - Presence - Treble - Bass - Volume - Bright input - Normal input

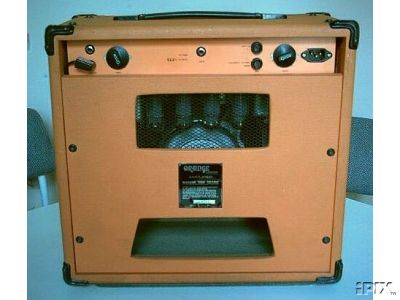

Rear Panel Layout:2 Speaker outputs - Impedance selector - Serial number - Preamp/Slave output - Fuses - Mains selector - Mains input
Cabinet:
Weight:
Speakers/Load:Impedance selector present

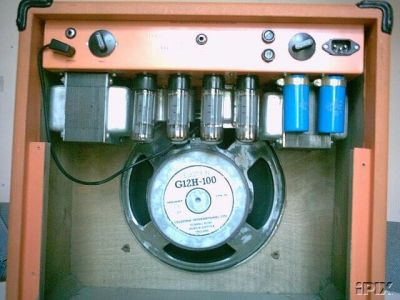

Speaker model:Rola-Celestion G12-100 (16 Ohms)
Effects:None
Output:120 Watts?
Preamp tubes:1.5 x 2AX7
Power tubes:4 x EL34
Bias:Fixed bias???
Rectifier:solid state
Phase Inverter:1/2 12AX7
Circuit:
Chassis layout:
Comments:
