Orange Amp Field Guide: OR135R COMBO

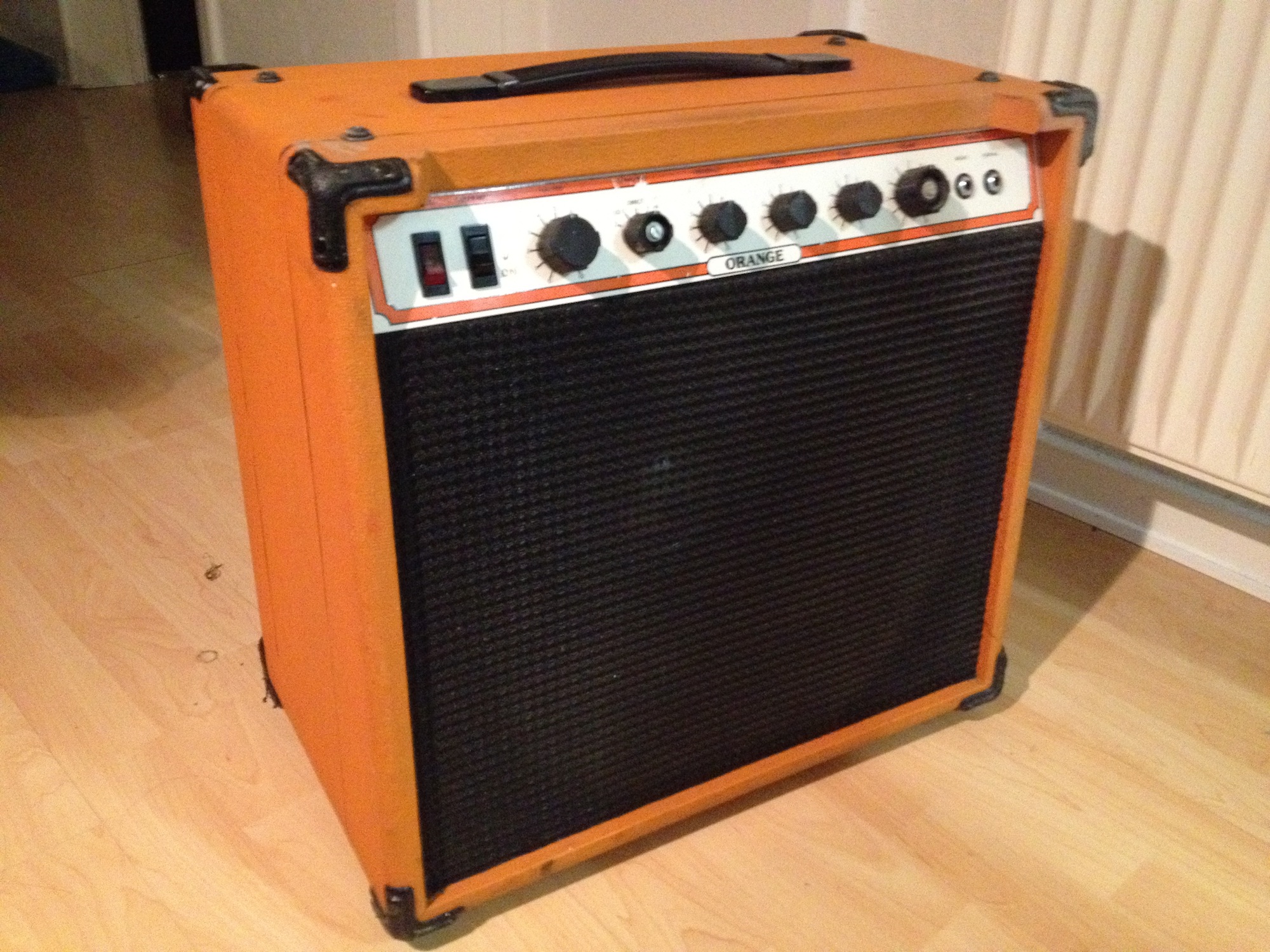

OR135R 1x12 COMBO


Year: 1978
Model:Hustler 1x12 Combo
Model Number:OR135R
serial Number:016229

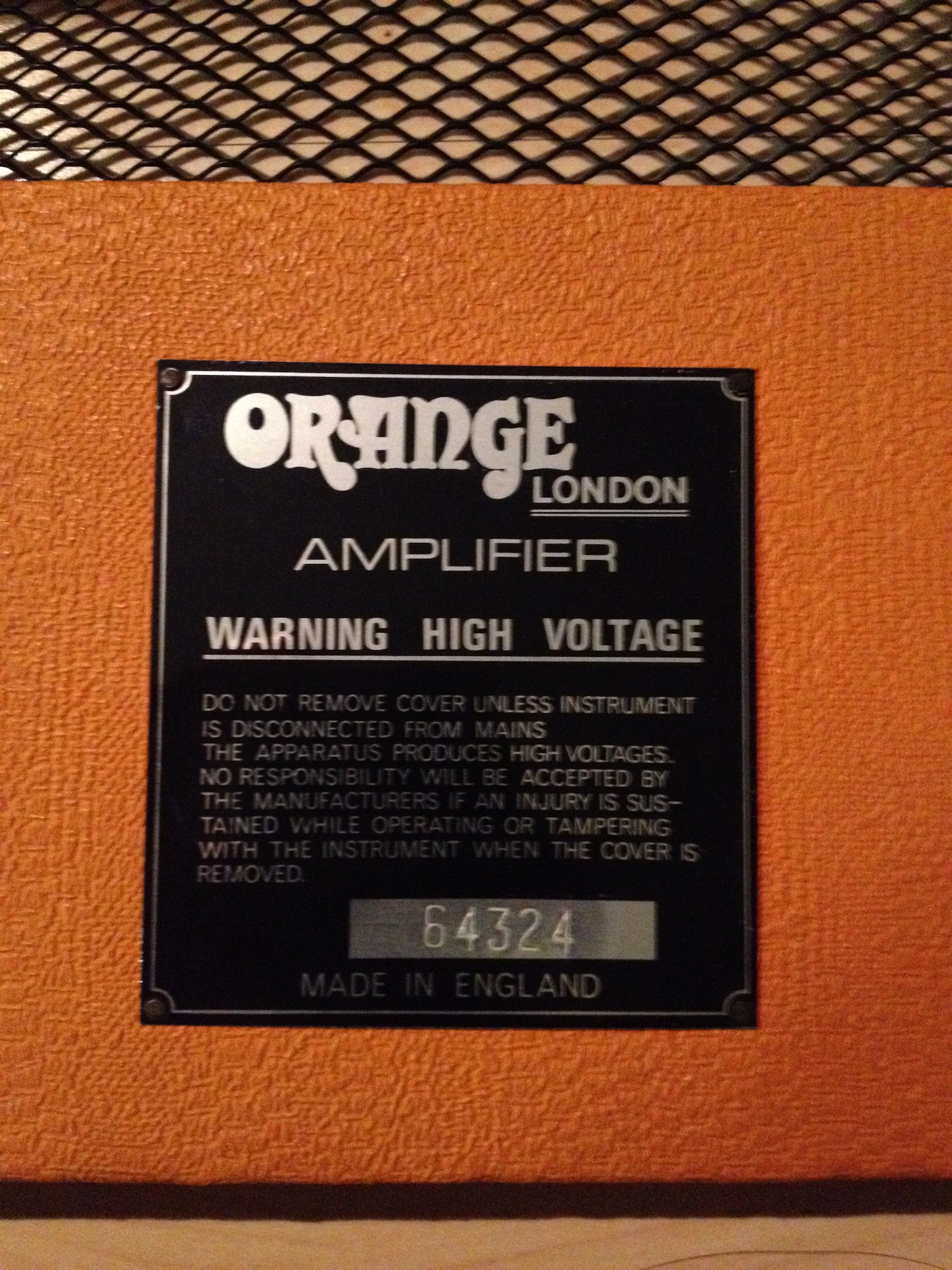

Plate Number:64324
Config:COMBO with front controls

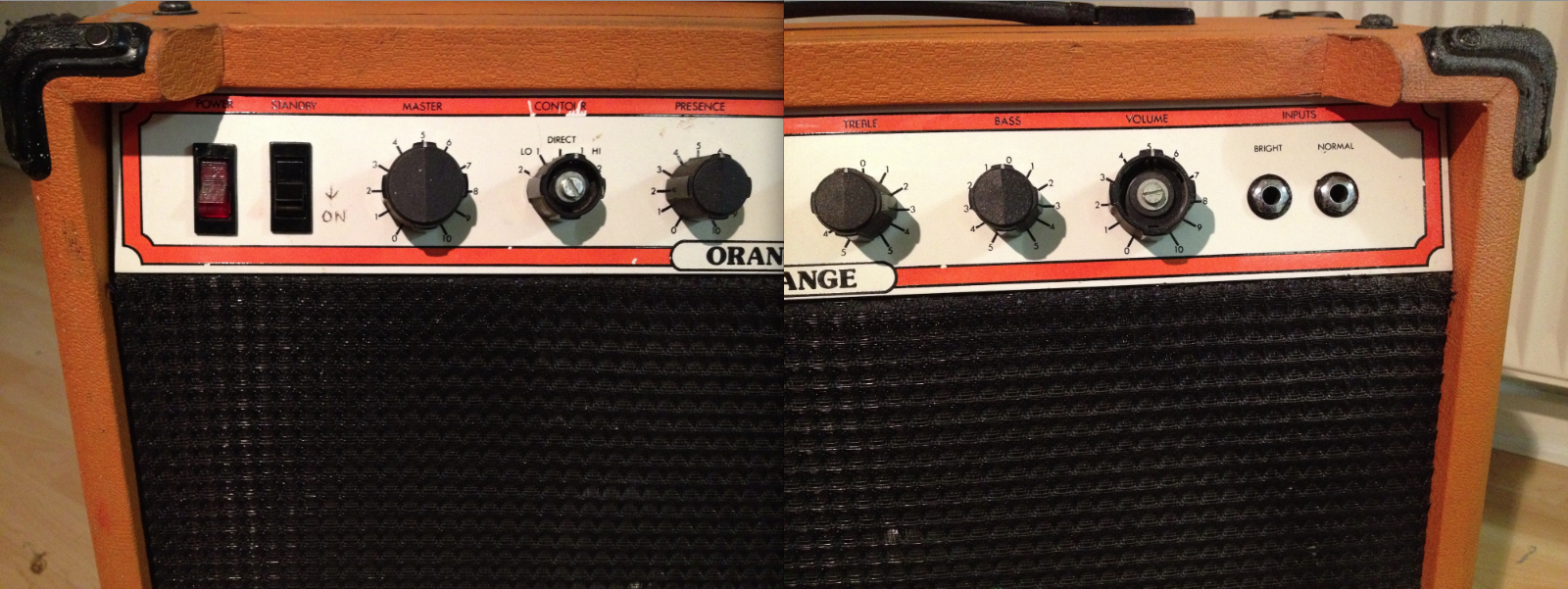

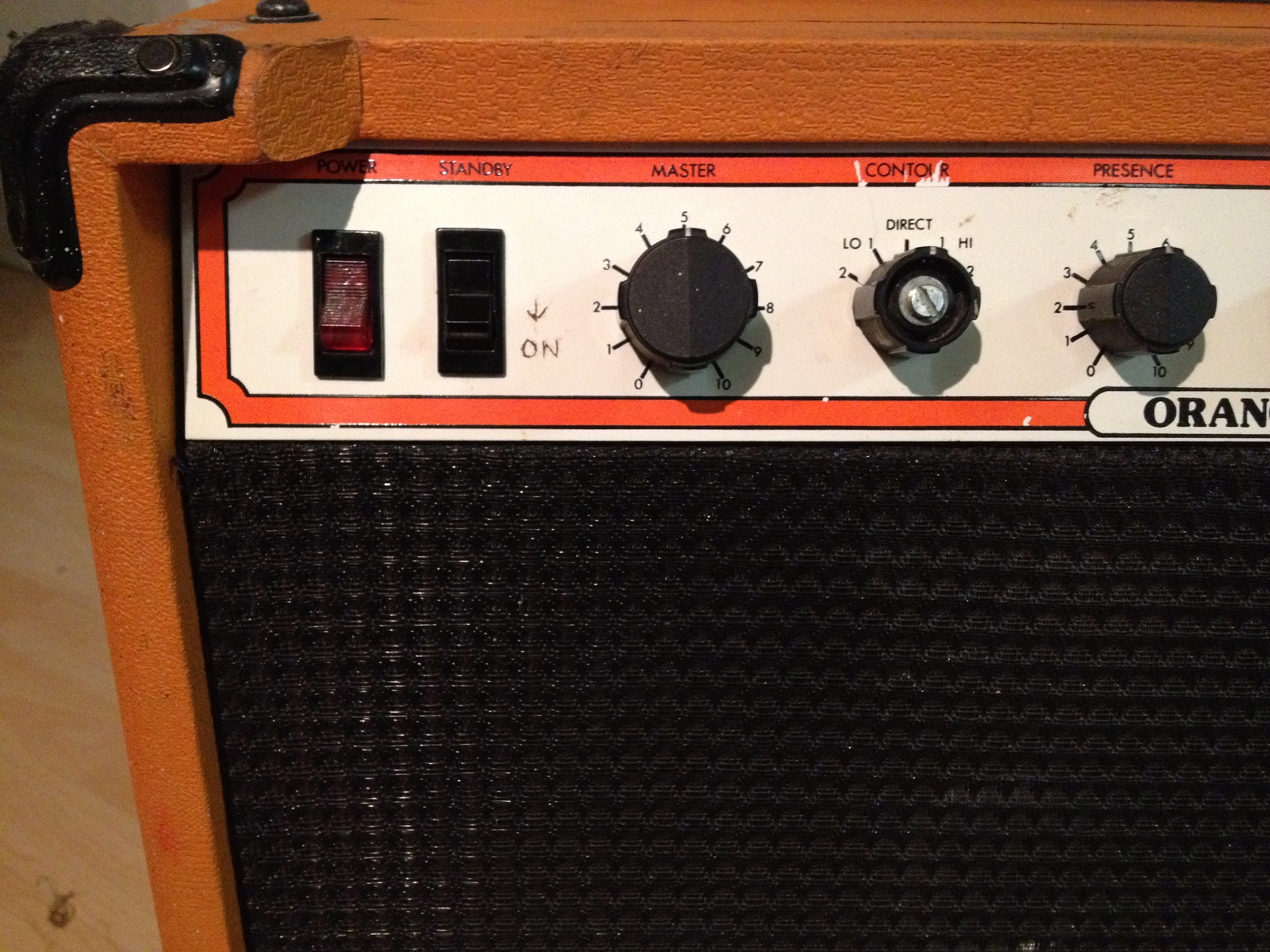

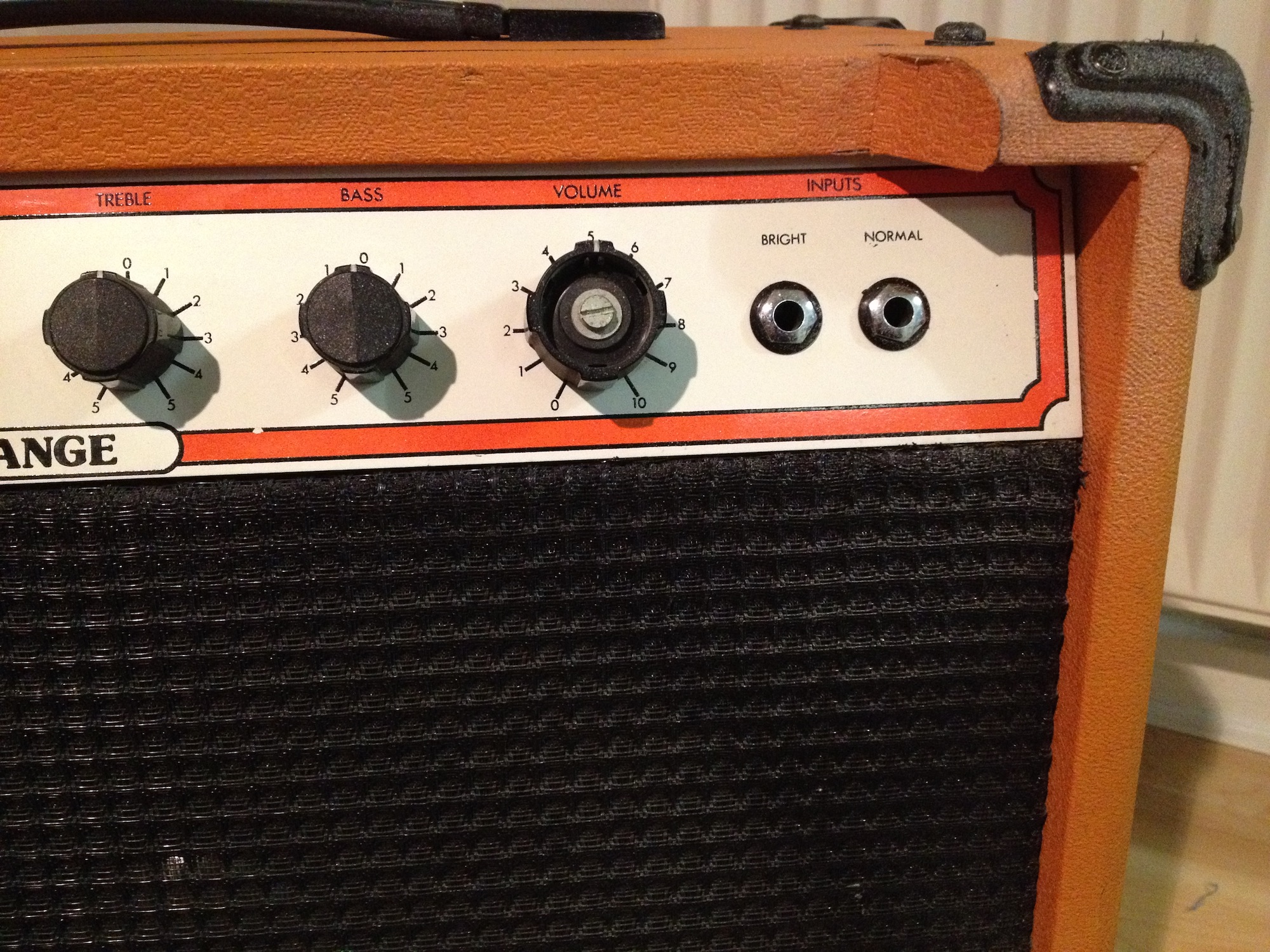

Control Panel Layout:Power | Standby | Master | Connector | Presence | Treble | Bass | Volume | Inputs (Bright | Normal)

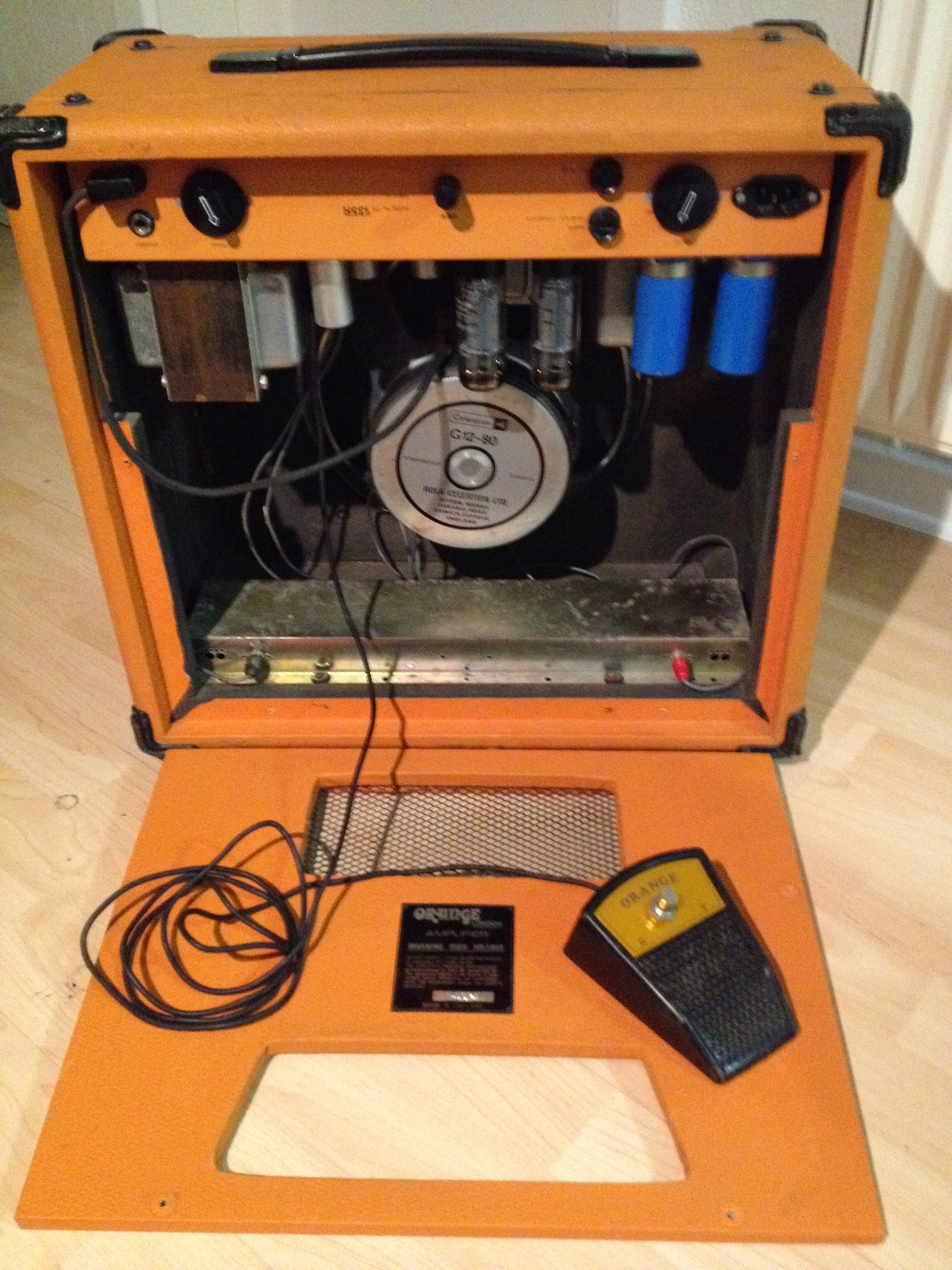

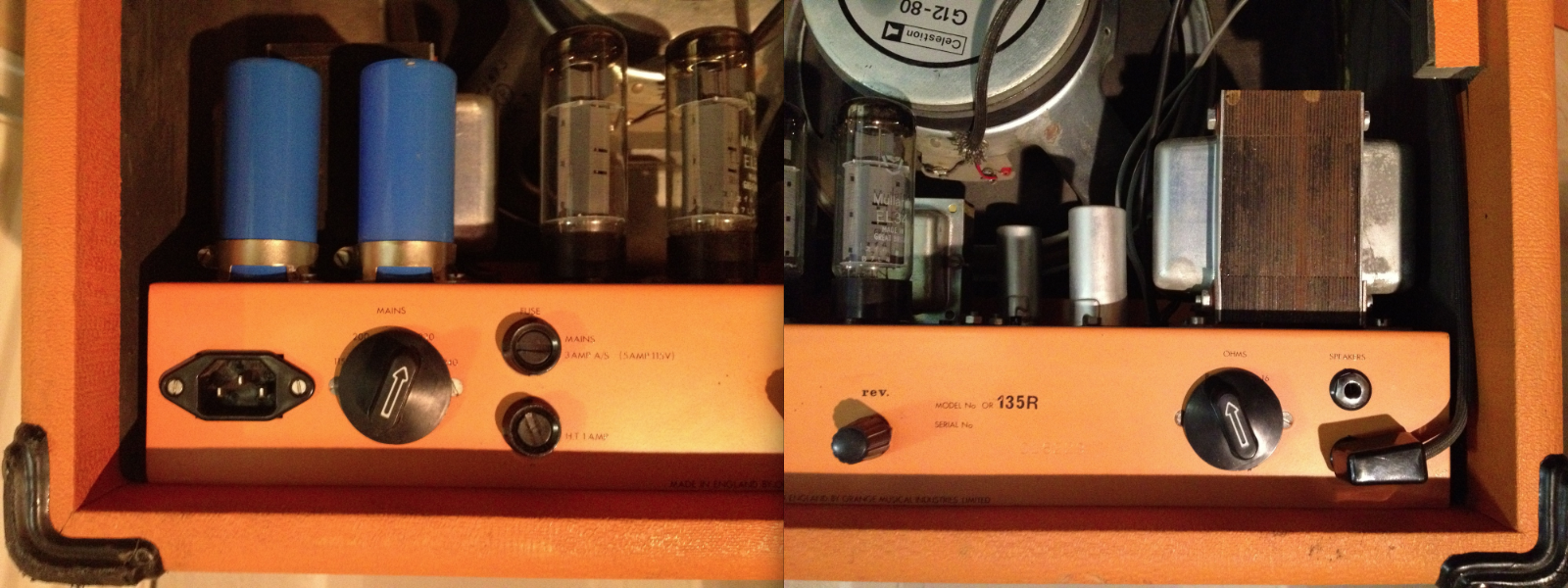

Rear Panel Layout:Mains Input | Mains Selector | Fuse Holders x2 | Reverb | Ohms Selector | Speaker Output x2
Cabinet:17.5" x 10"
Weight:
Speakers/Load:8 / 16 ohms

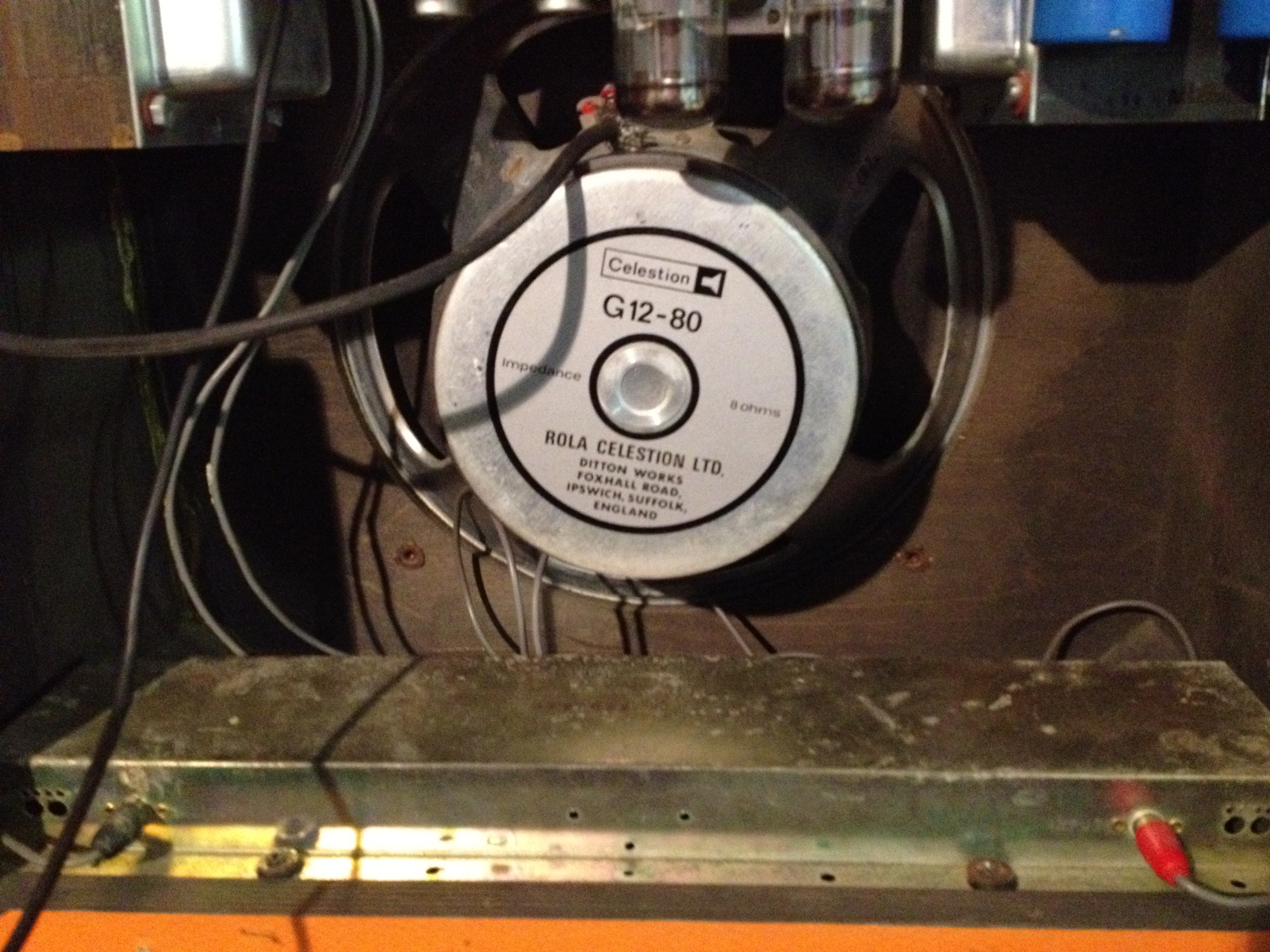

Speaker model:1x Rola Celestion G12-80 (8 ohms)

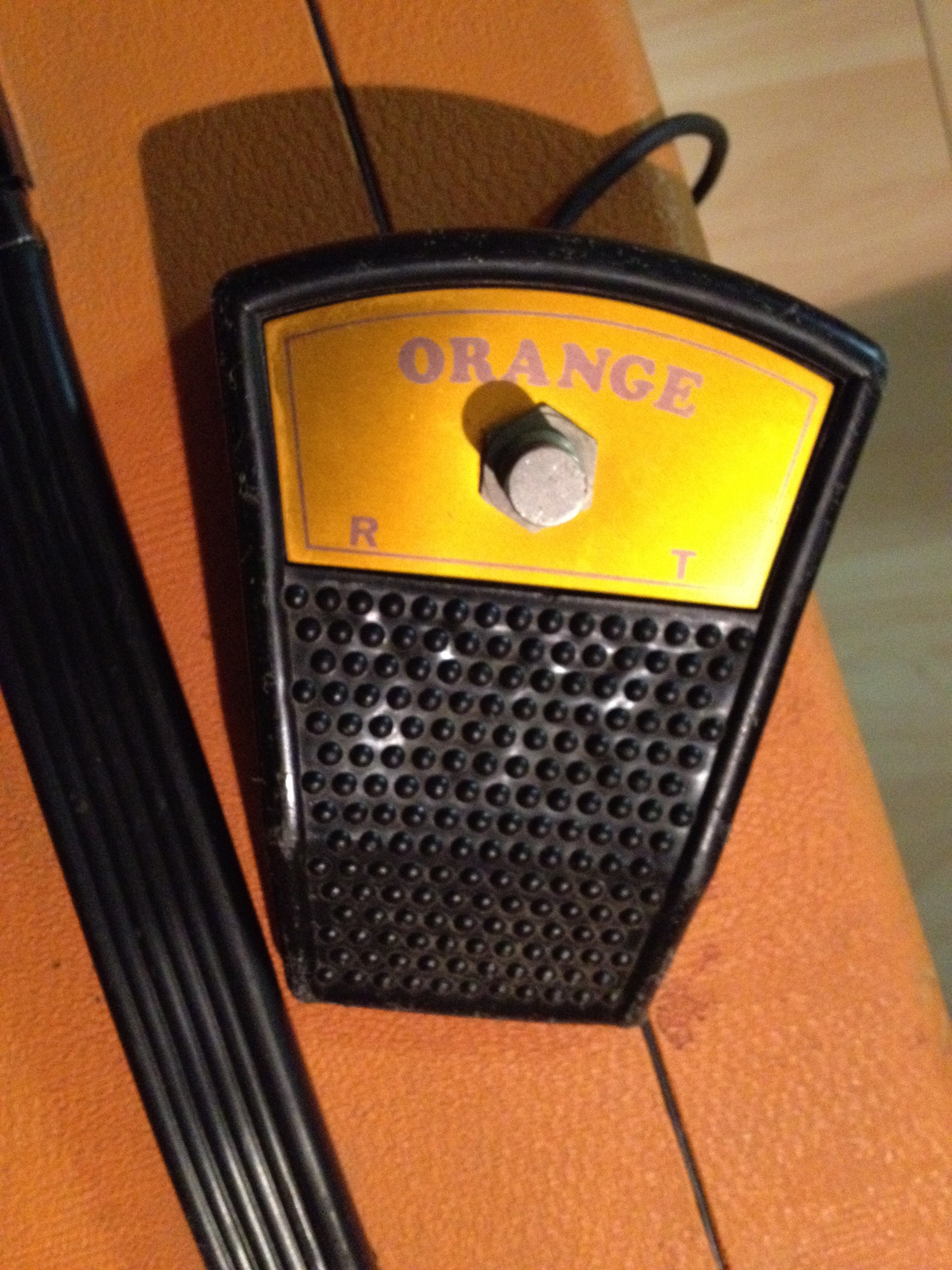

Effects:Reverb
Output:80 Watts?
Preamp tubes:2 x 12AX7
Power tubes:2x Mullard EL34
Bias:Fixed bias???
Rectifier:solid state
Phase Inverter:1/2 12AX7
Circuit:
Chassis layout:
Comments:
