Year: | 1972-73 |
Model: | OR80 Combo Vintage |
Model Number: | OR80 |

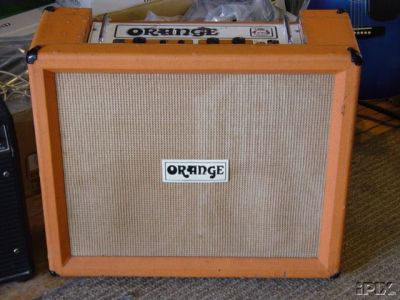

Config: | Combo |

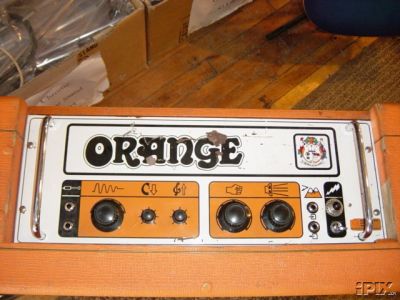

Control Panel Layout: | Input - F.A.C. - Bass - Treble - H.F.Drive - Gain - Echo Send - Echo Return - Pilot Light - Power |

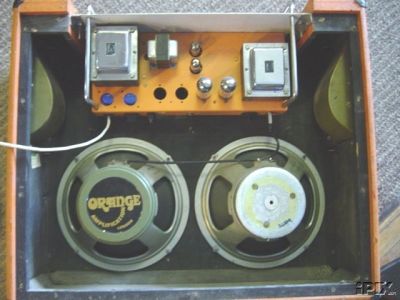

Rear Panel Layout: | mains chord - Mains selector - 2 Fuse holders - Slave Output - impedance selector - 2 Speaker Outputs (same impedance?) |
Cabinet: | size? |
Weight: | |
Speakers/Load: | (4/8/16Ohms) |

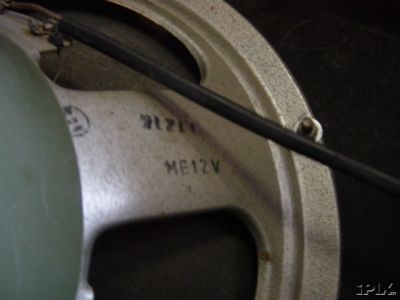

Speaker model: | 25W Celestion Greenbacks /30w Celestion Greenbacks ("Orange" label) |
Effects: | N/A |
Output: | 80 Watts |
Preamp tubes: | 1.5 x 12AX7 |
Power tubes: | 2 x EL34 |
Bias: | Fixed bias |
Rectifier: | solid state |
Phase Inverter: | Cathodyne type: 1/2 x 12ax7 |
Circuit: | certain type of schematic?(link to schematic?) |

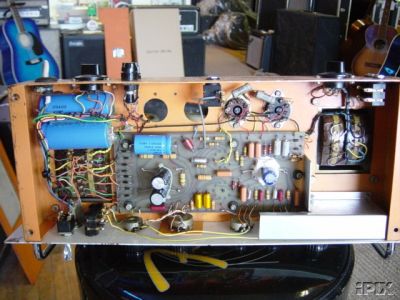

Chassis layout: | preamp tubes are mounted on the pcb. |
Comments: | |
