Year: | halfway90's - +-2001 |
Model: | OR80 Reissue |
Model Number: | OR80 |
Config: | Head |
Control Panel Layout: | Input - F.A.C. - Bass - Treble - H.F.Drive - Gain - Echo Send - Echo Return - Pilot Light - Power |

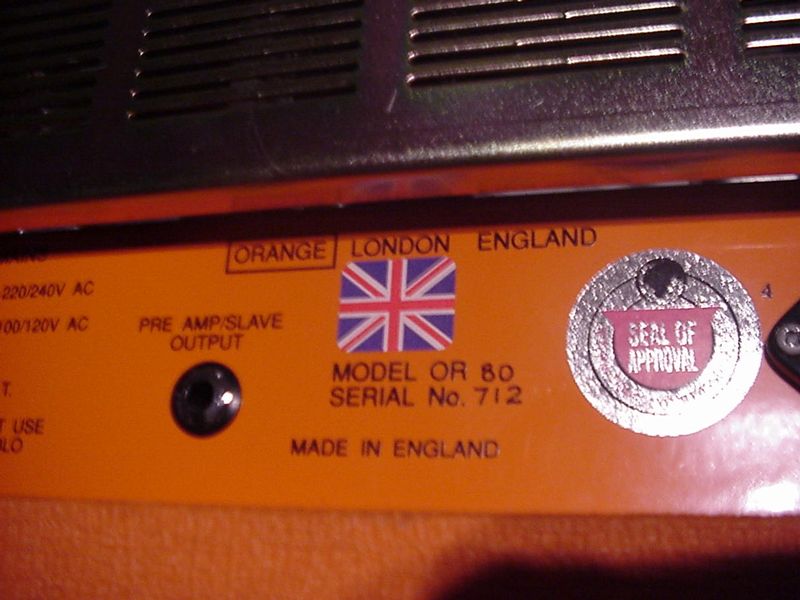

Rear Panel Layout: | metal backpanel(90's only)-Euro mains connector - Mains selector - 2 Fuse holders - Slave Output - impedance selector - 2 Speaker Outputs (same impedance?) |
Cabinet: | size? |
Weight: | |
Speakers/Load: | (4/8/16Ohms) |
Speaker model: | N/A |
Effects: | N/A |
Output: | 80 Watts |
Preamp tubes: | 1.5 x 12AX7 |
Power tubes: | 2 x EL34 |
Bias: | Fixed bias |
Rectifier: | solid state |
Phase Inverter: | Cathodyne type: 1/2 x 12ax7 |
Circuit: | certain type of schematic?(link to schematic?) |
Chassis layout: | certain type of layout (pcb number/hand-wired?) |
Comments: | |
