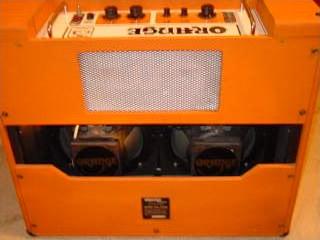

Year: | older than 1974 |
Model: | OR80 Reverb Pics-Only Combo Vintage |
Model Number: | OR80R |
Serial Numbers: | Chassis: 80061R Cabinet: OA2476 |
Control Panel Layout: | Input - F.A.C. - Bass - Treble - H.F.Drive - Gain - reverb footswitch input??? - reverb pot??? - Pilot Light - Power |
Rear Panel Layout: | mains chord - Mains selector - 2 Fuse holders - Reverb input/output - impedance selector - 2 Speaker Outputs (same impedance?) - |
Cabinet: | |
Weight: | |
Speakers/Load: | (4/8/16Ohms) |
Speaker model: | Square speakers with Orange label??? |

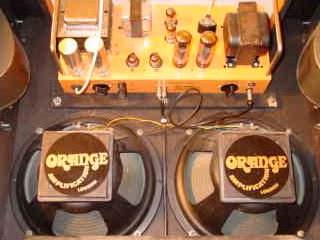

Effects: | Reverb tank on bottom of cabinet, electronics embedded in chassis |
Output: | 80 Watts |
Preamp tubes: | ??? |
Power tubes: | 2 x EL34 |
Bias: | Fixed bias |
Rectifier: | solid state |
Phase Inverter: | Cathodyne type: 1/2 x 12ax7 |
Circuit: | This is probably a merge of an OR80 with the Orange reverb schematic that normally has a separate housing. |

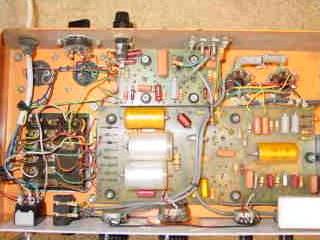

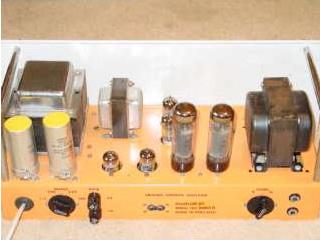

Chassis layout: | The two remaining power tube sockets are used two put 9 pins tubes, so there are four sockets in total for preamp and reverb drive and recovery tubes. Preamp and reverb driver and recovery tubes are pcb-mounted! |
Comments: | This is the oldest Orange amp with reverb that seems to be original! |
