Orange Amp Field Guide: SLAVE 120 HEAD

Slave 120 HEAD




Model:Slave 120
Model Number:ORSL120

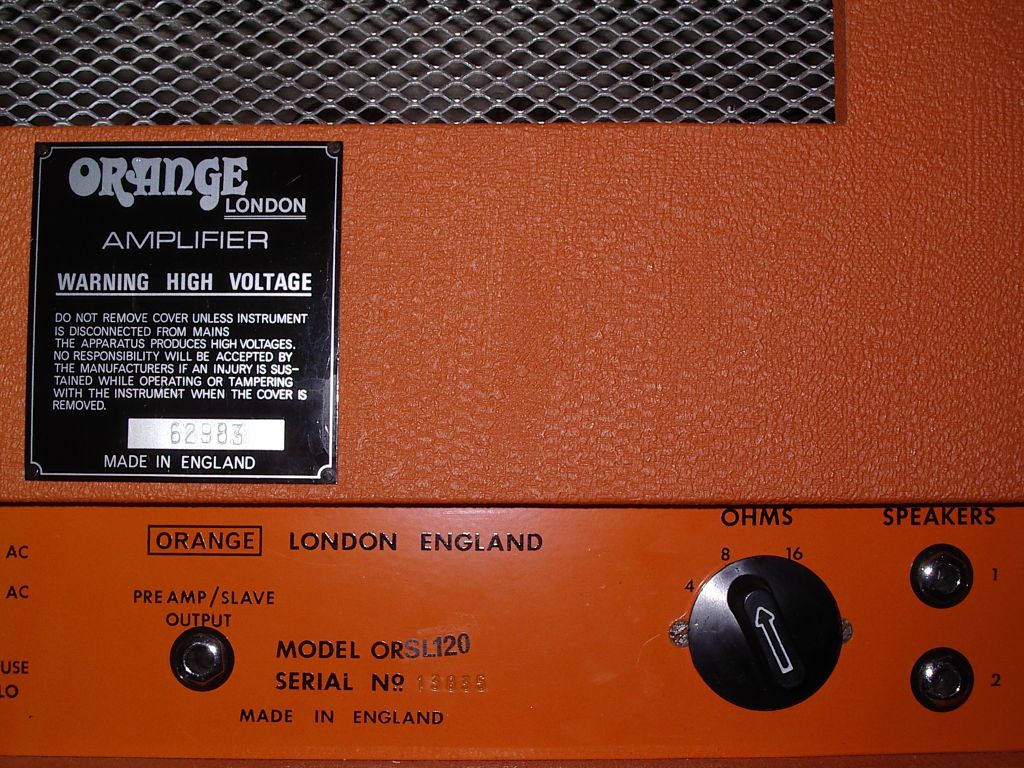

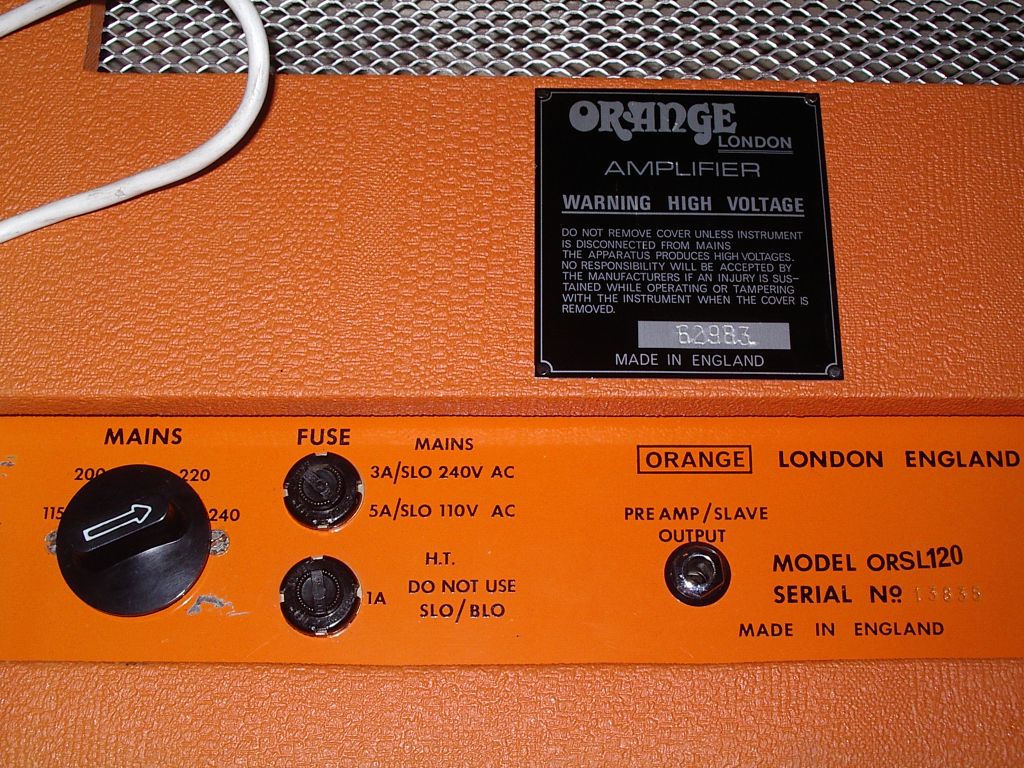

Serial Number:13835 (cab no 62983)
Config:Head

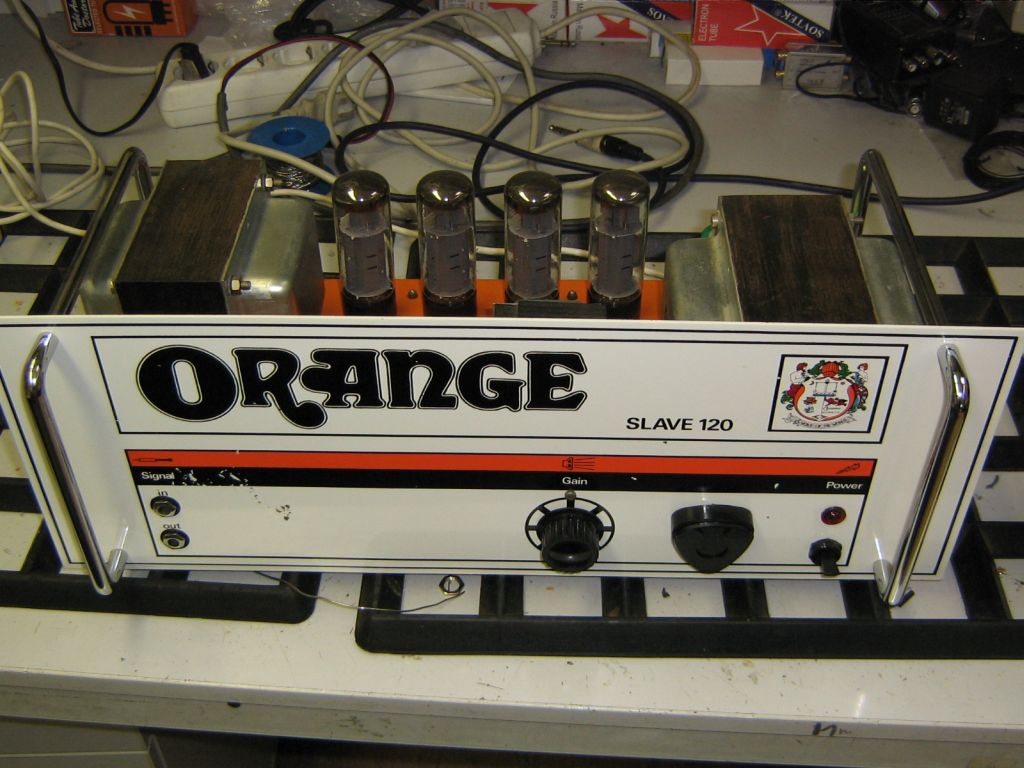

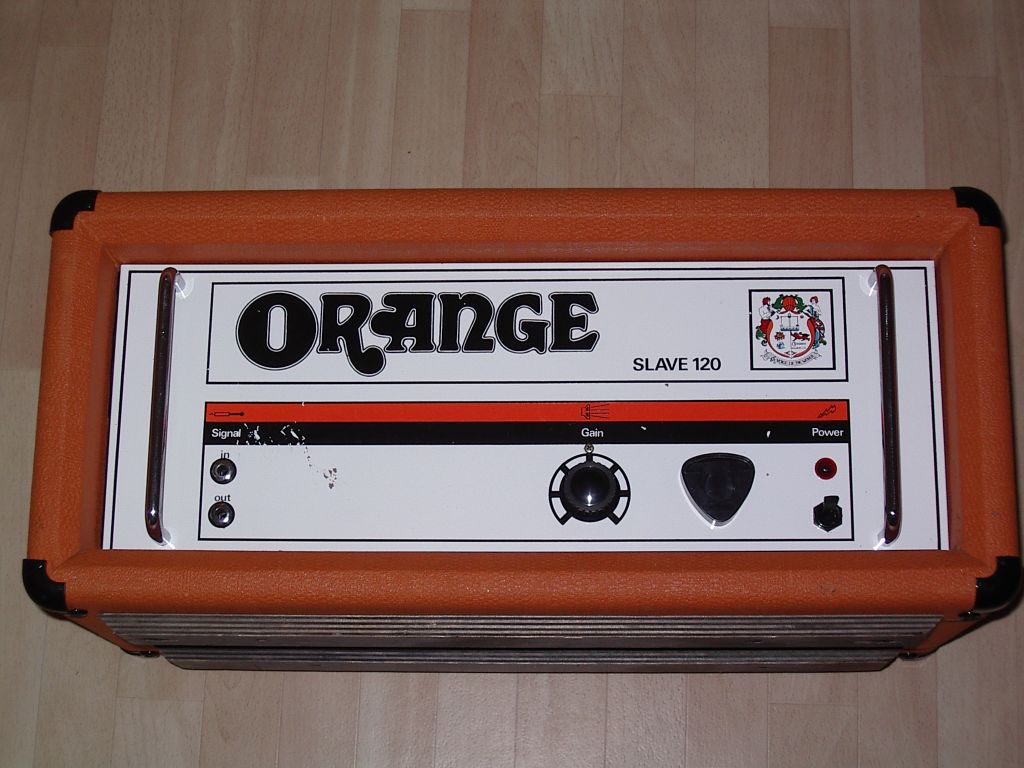

Control Panel Layout:Signal In - Signal Out - Gain - Pilot light - Power switch

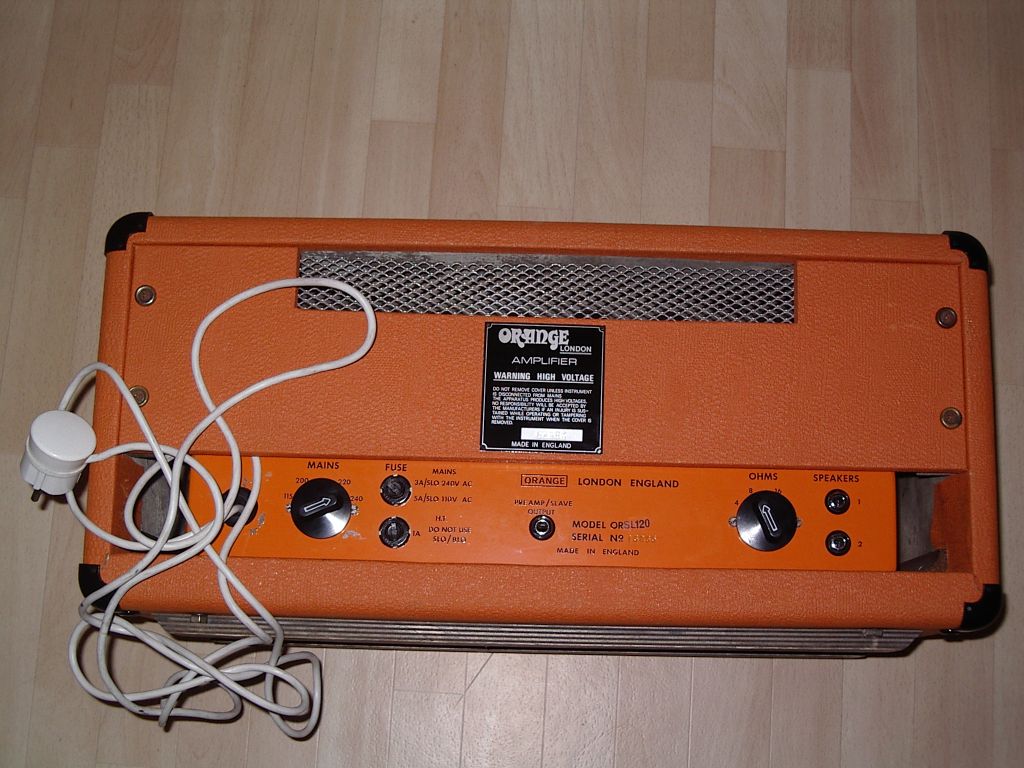

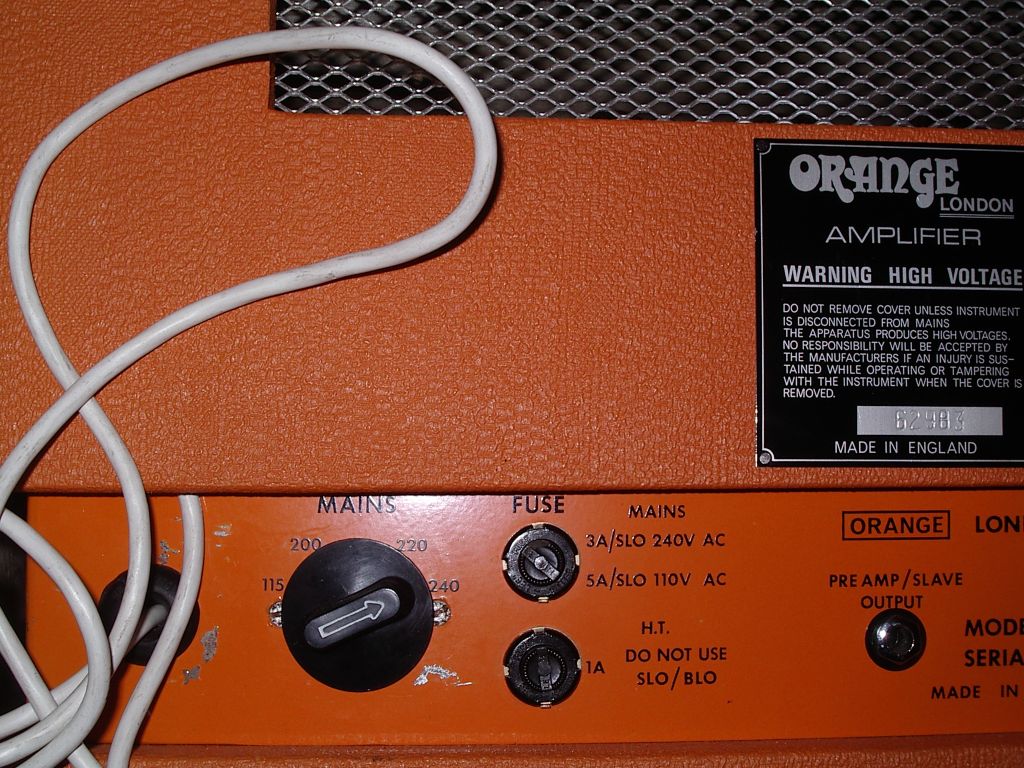

Rear Panel Layout:seems identical as normal OR120
Cabinet:54x24x25,5 (LxWxH)
Weight:21.7kg
Speakers/Load:same as OR120
Speaker model:N/A
Effects:N/A
Output:120 Watts
Preamp tubes:??? x 12AX7

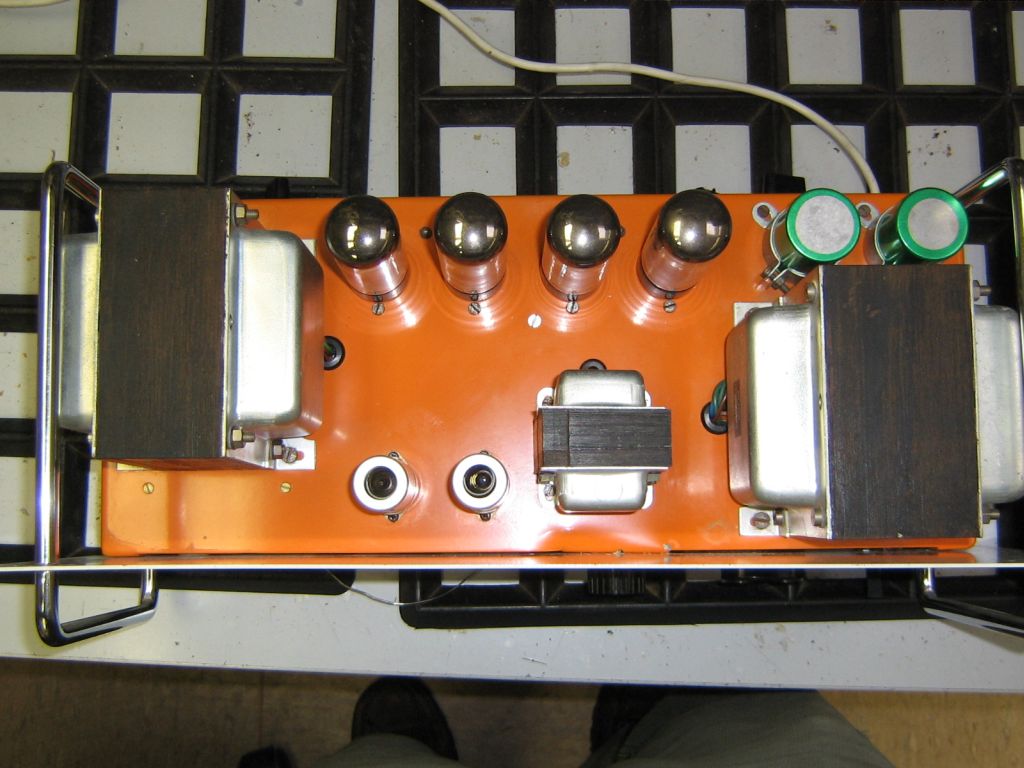

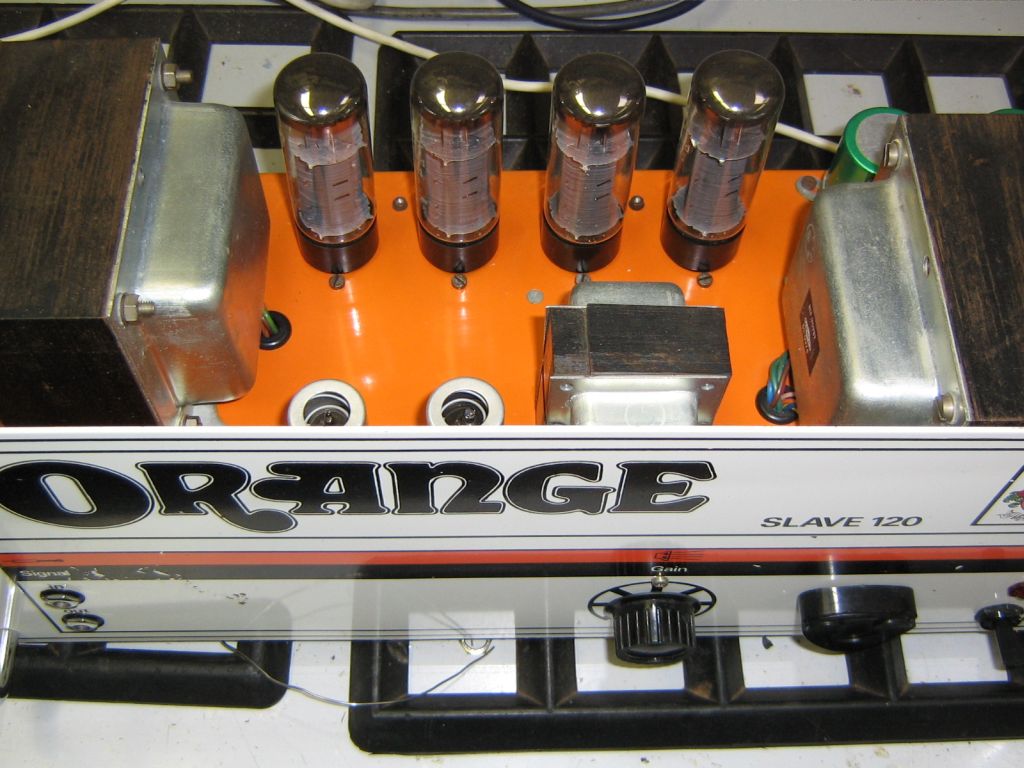

Power tubes:4 x EL34
Bias:Fixed bias
Rectifier:solid state
Phase Inverter:Cathodyne type: 1/2 x 12ax7
Circuit:power amp of OR120 with different preamp configuration

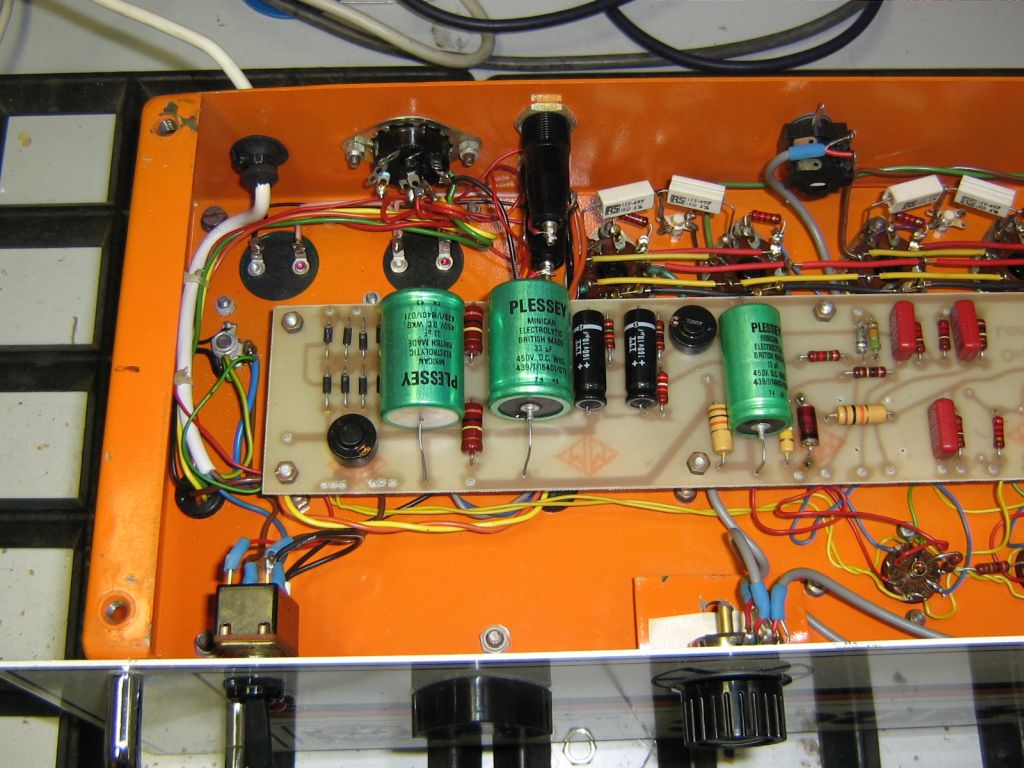

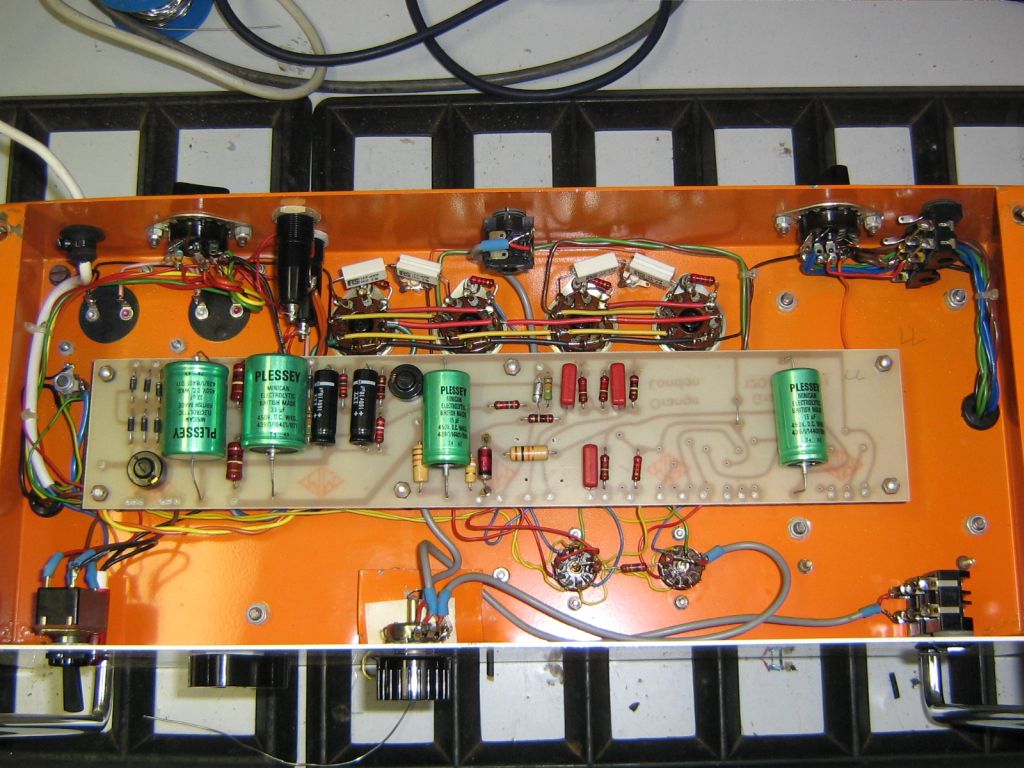

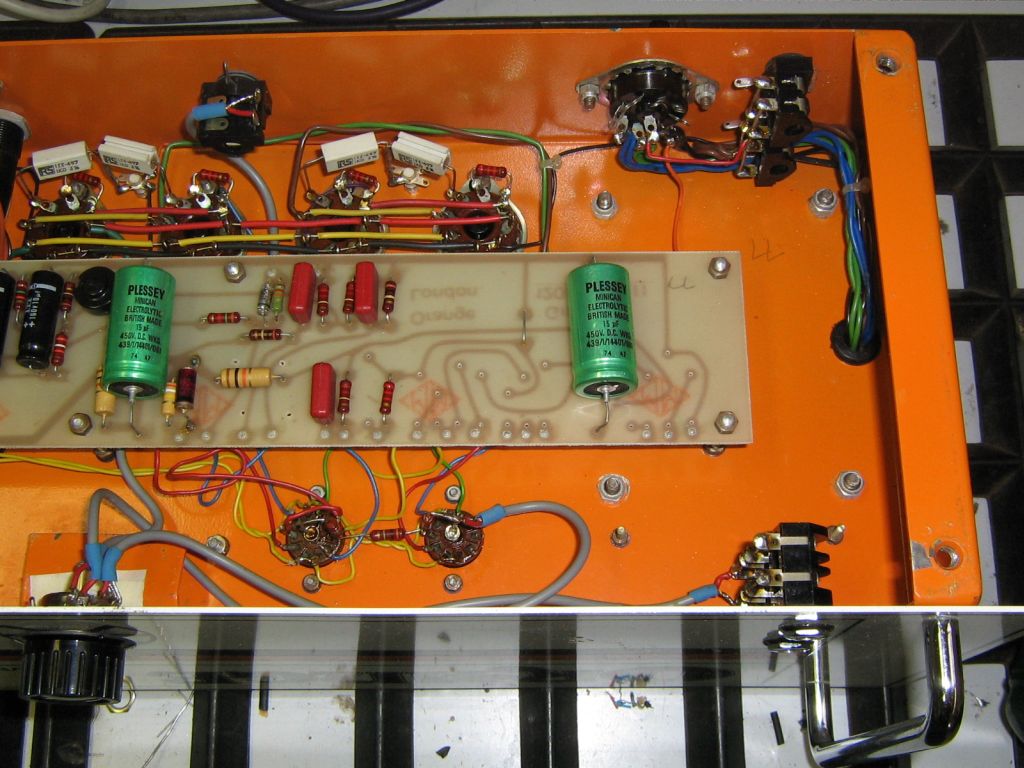

Chassis layout:certain type of layout (pcb number/hand-wired?)
Comments:pictures thanks to Dirk K.
amp was outfitted with a pick holder at some stage
